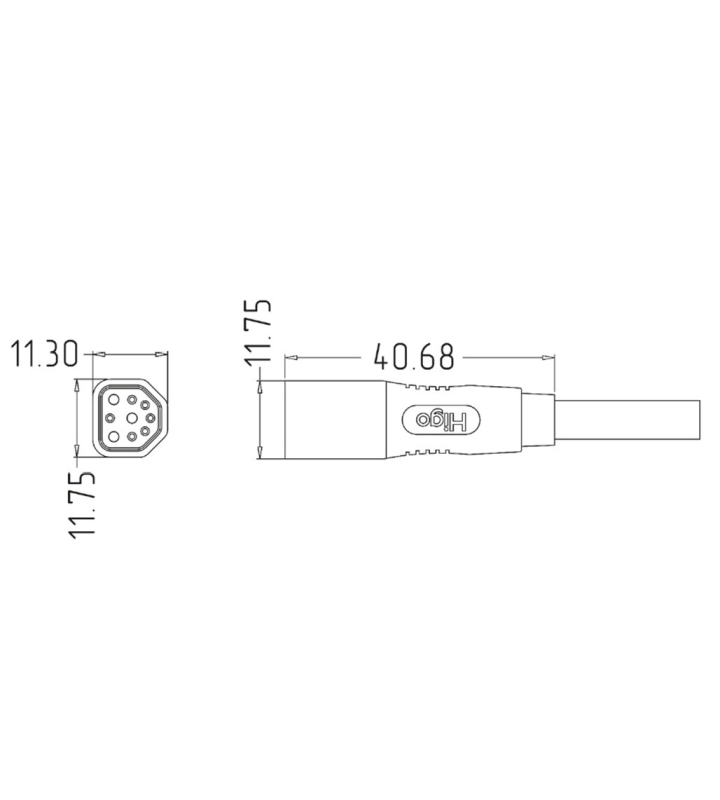

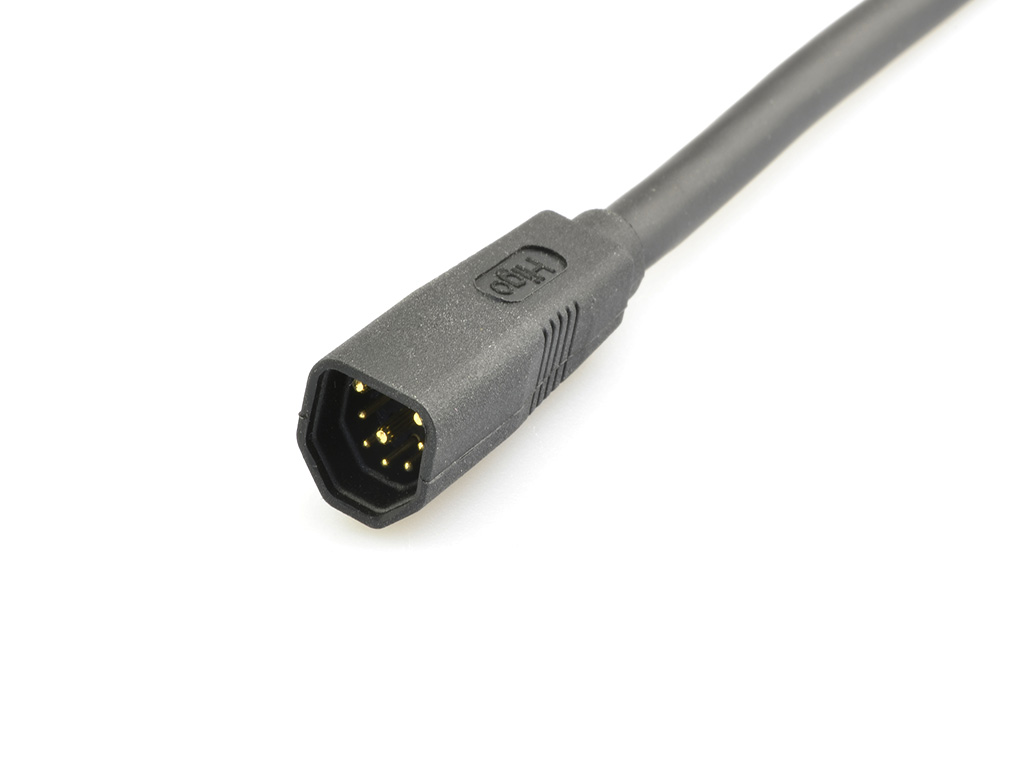

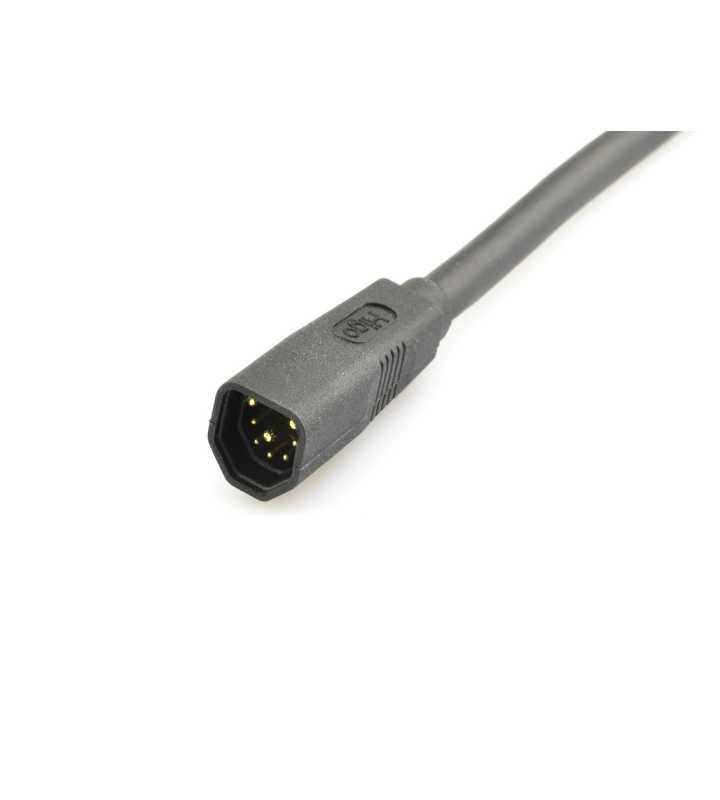

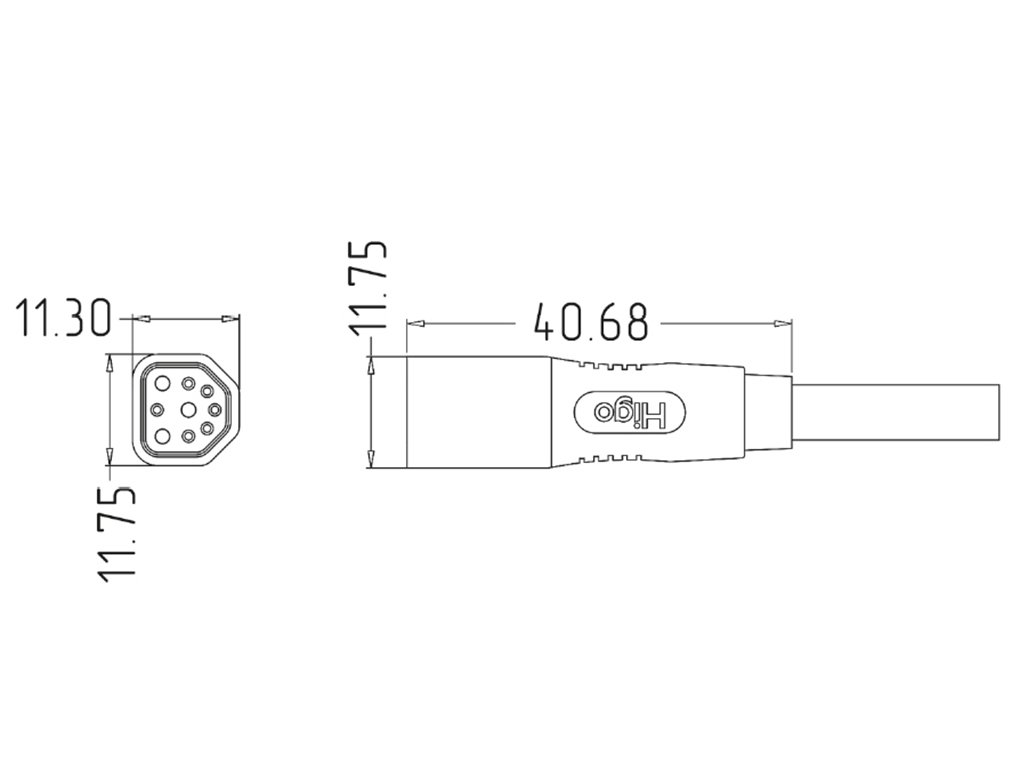

Male cable connector
Z913BG P 00 AF 1000
Ask for a quote Add favouriteGeneral Characteristics
| Number of contacts | 9 (3+6) |
|---|---|
| Connector shape | Plug |
| Gender | Male |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Locking | Push-on (no locking) |
| Protection degree | IP66 |
| Mating cycles (times) | 200 Mating times |
| Connector diameter | 21 mm |
| Fitting length | 70.7 mm |
| Cable Length | 1000 mm |
| Cable diameter | 5.8 mm |
| Wire section | 3 x 1,5 + 6 x 0,14 mm² |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 15 / 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 MΩ |
Material
| Material jacket | PVC |
|---|---|
| Insulation wire | PVC |
| Material of contact | Copper Alloy |
| Contact plating | Gold over Nickel |
