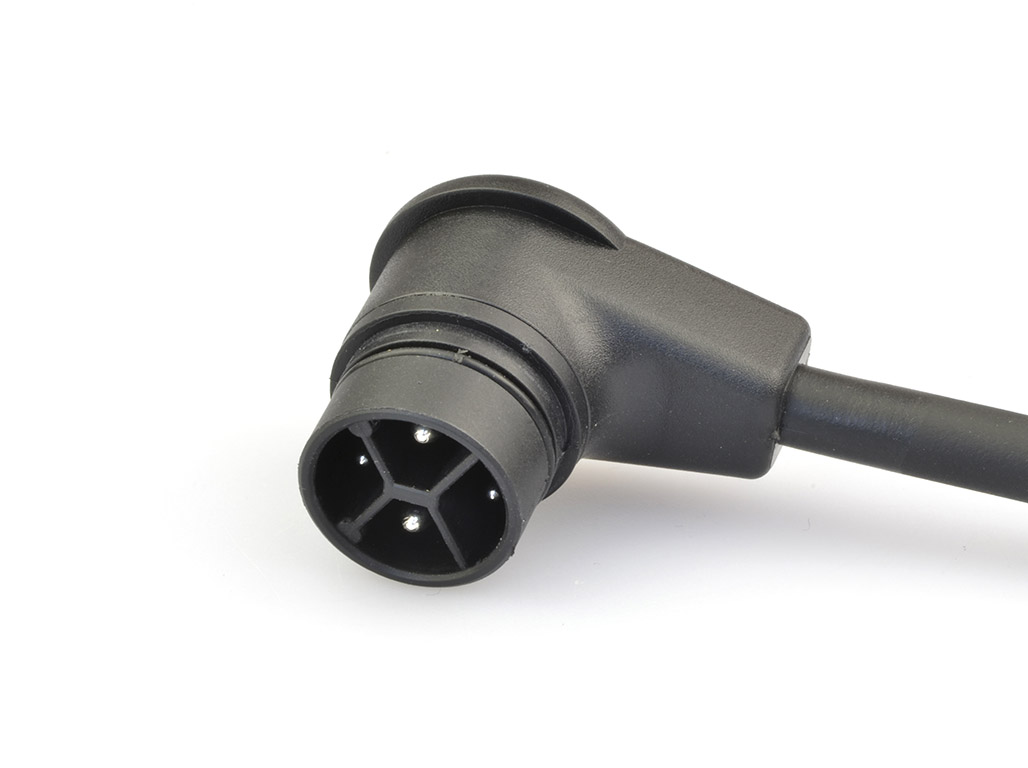

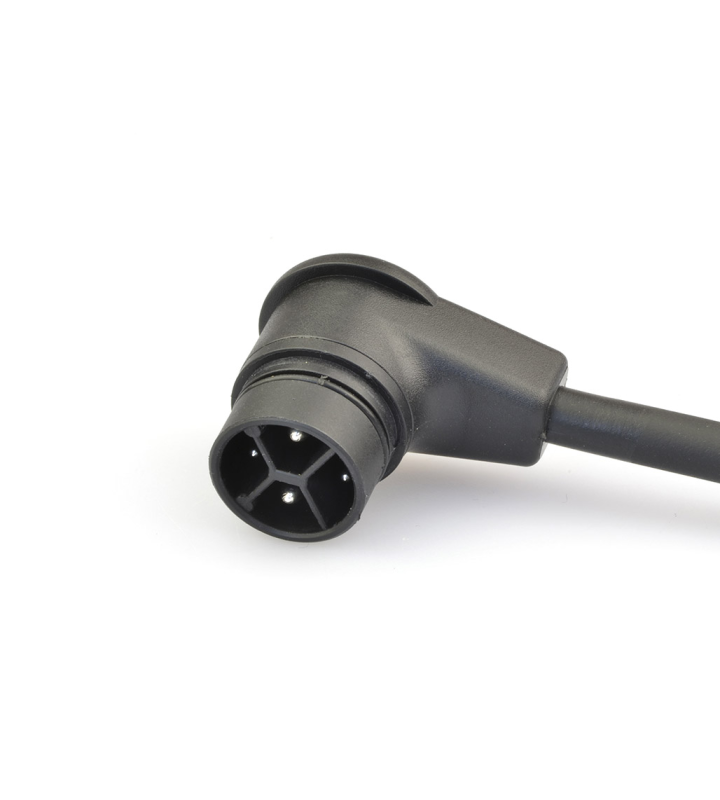

Battery male angled plug connector 48V code, no locking push-on
Only for use in 48V applications
Z624BG A 00 B7 1000
Ask for a quote
Add favourite
General Characteristics
|
Number of contacts
|
6 (2+4)
|
|
Connector shape
|
Angled plug
|
|
Gender
|
Male
|
|
Color
|
Black
|
|
Upper temperature
|
80 °C
|
|
Lower temperature
|
-25 °C
|
|
Locking
|
Push-on (no locking)
|
|
Protection degree
|
IP67
|
|
Mating cycles (times)
|
3000 Mating times
|
|
Connector diameter
|
28 mm
|
|
Cable Length
|
1000 mm
|
|
Wire section
|
2 x 2,0 + 4 x 0,34 mm²
|
|
Remark
|
Other cable length/type on request
|
Electrical Parameters
|
Rated current
|
45 / 5 A
|
|
Rated voltage
|
48 V AC / 60 V DC
|
|
Max. insulation resistance (MΩ)
|
≥20 MΩ
|
|
Max. contact resistance (MΩ)
|
≤10 MΩ
|
Material
|
Material jacket
|
TPU
|
|
Insulation wire
|
PVC
|
|
Material of contact
|
Brass
|
|
Contact plating
|
Silver over Nickel
|
