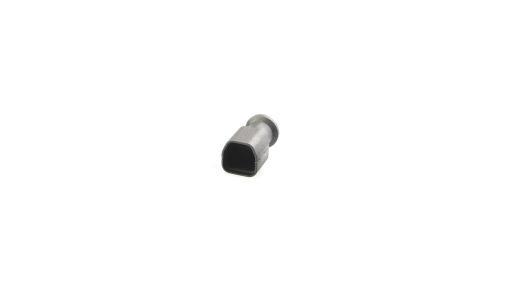

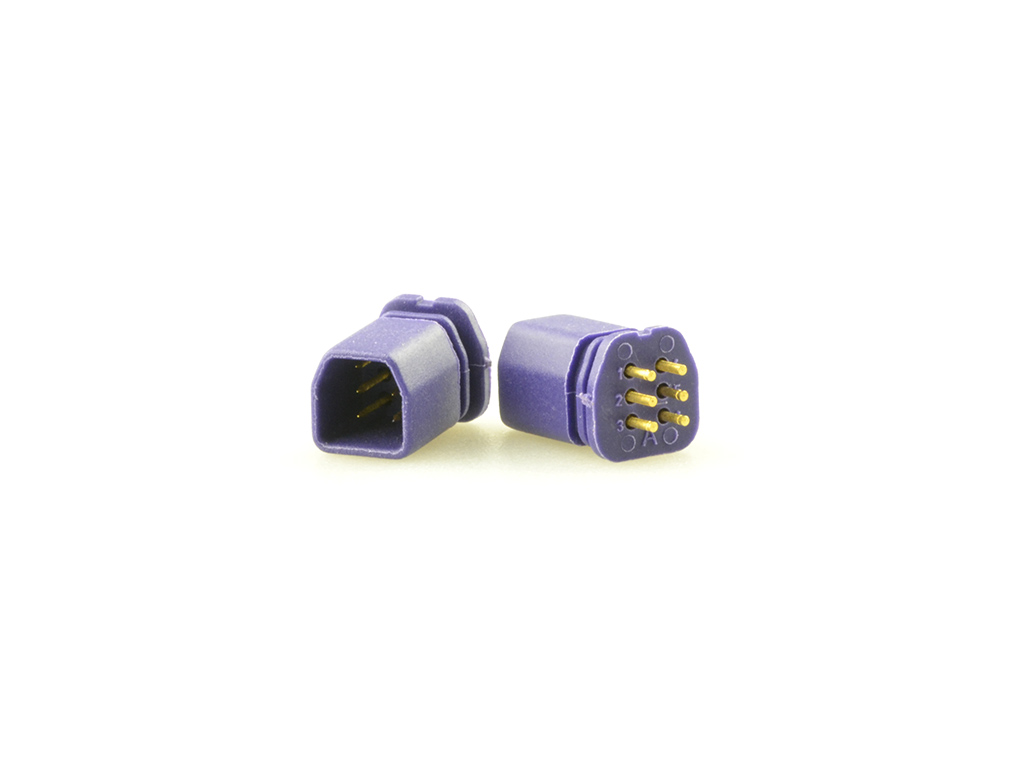

Mini F male panel mount connector
Straight PCB contacts
Z609FG C 04 00 0000
Ask for a quote Add favouriteGeneral Characteristics
| Number of contacts | 6 |
|---|---|
| Gender | Male |
| Color | Purple |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Locking | Push-on (no locking) |
| Protection degree | IP66/IP67 |
| Mating cycles (times) | 200 Mating times |

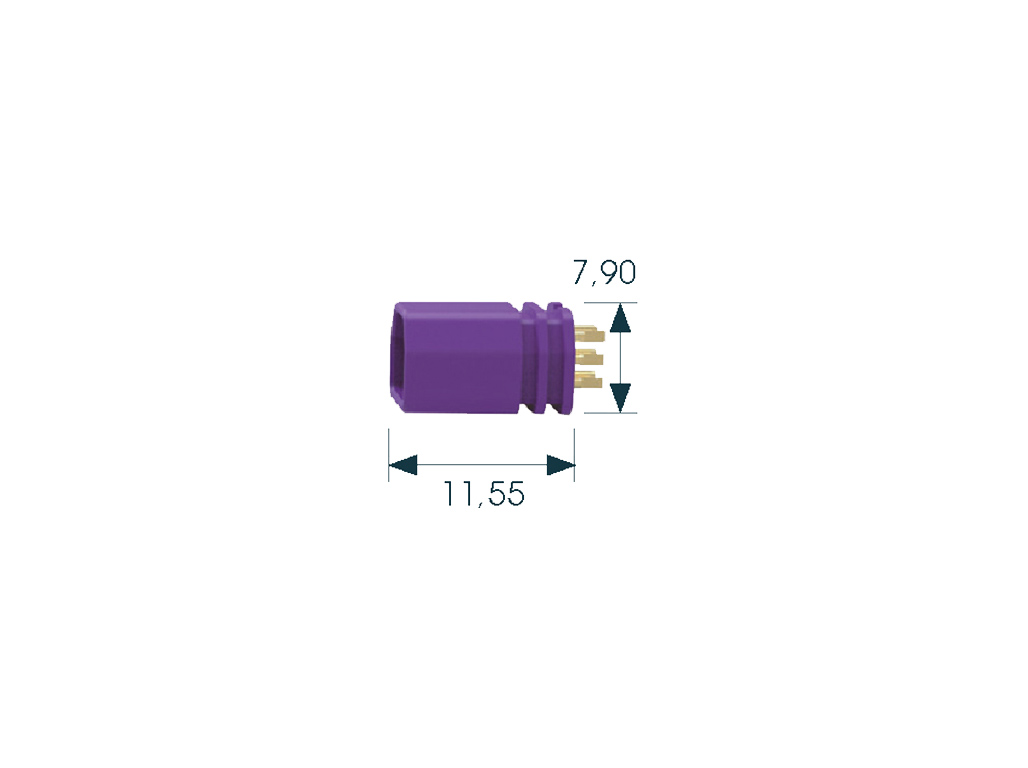

| Connector diameter | 7,9 x 7,9 mm |
| Terminal type | Straight PCB contacts |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 MΩ |
Material
| Material of contact | Copper Alloy |
|---|---|
| Contact plating | Gold over Nickel |
