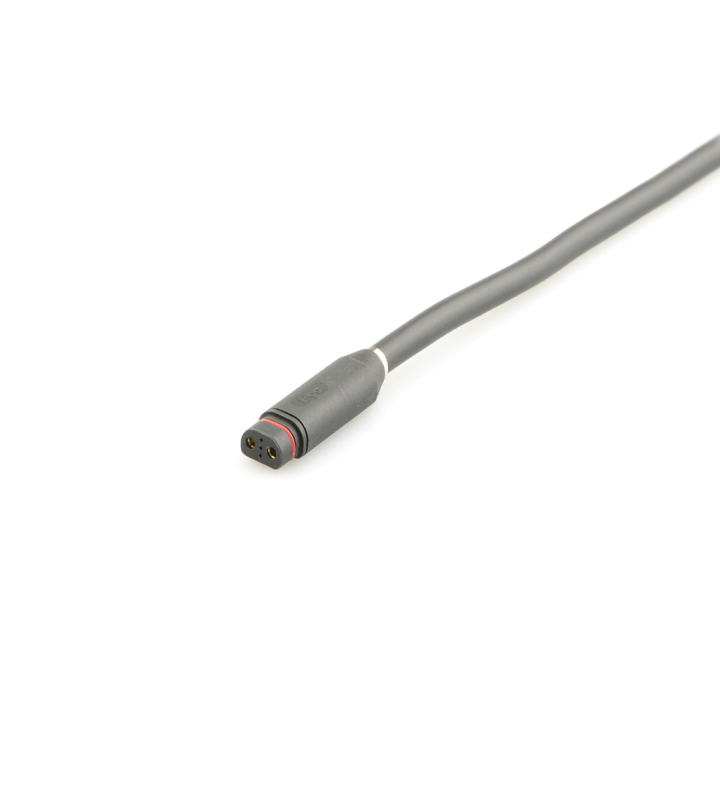

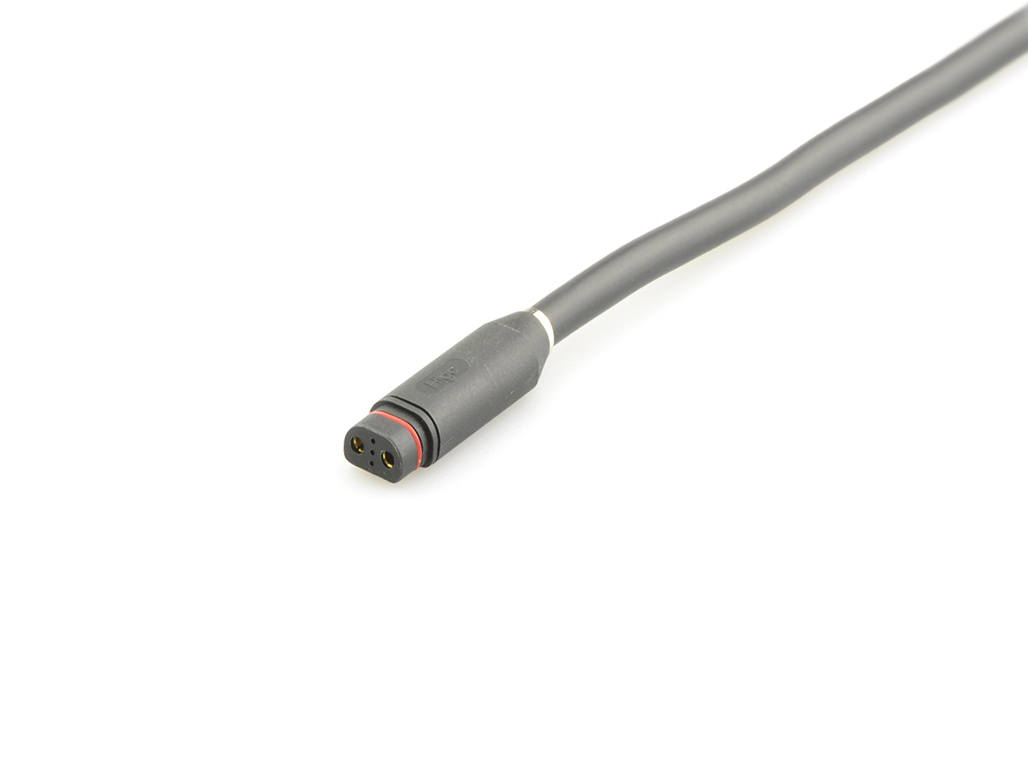

Female cable connector
Z511BM P 00 FT 1000
Ask for a quote Add favouriteGeneral Characteristics
| Number of contacts | 5 (2+3) |
|---|---|
| Connector shape | Plug |
| Gender | Female |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Locking | Push-on (no locking) |
| Protection degree | IP67 |
| Mating cycles (times) | 200 Mating times |

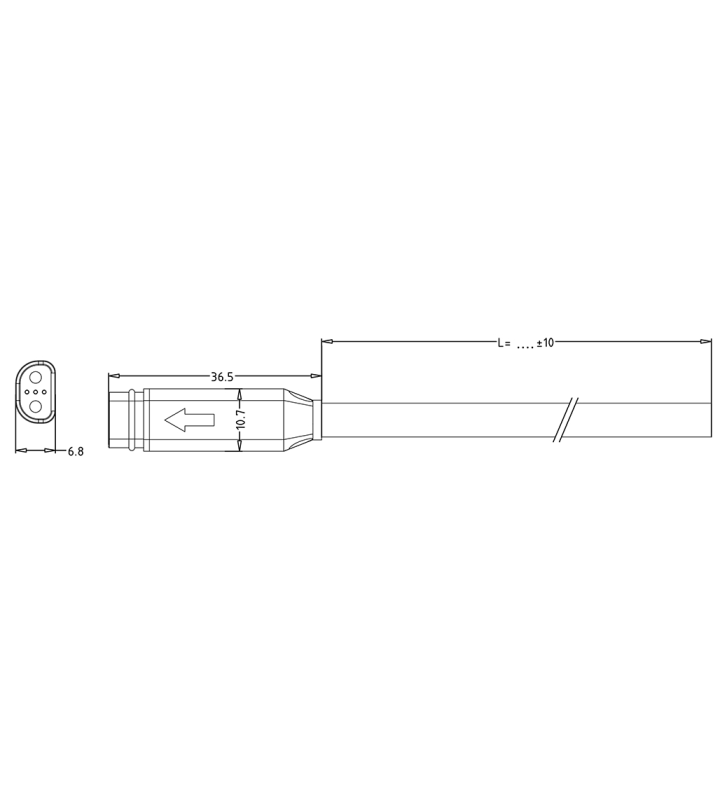

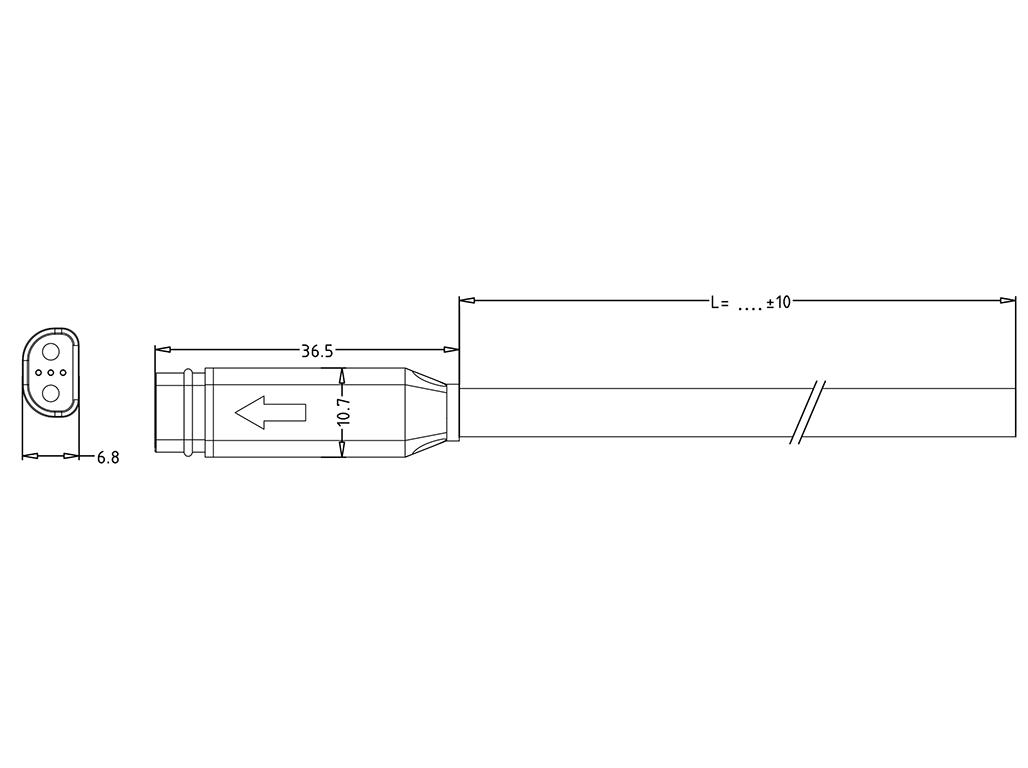

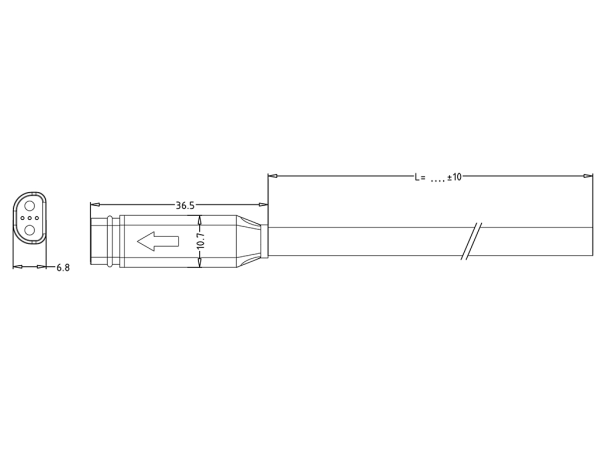

| Connector diameter | 26.4 mm |
| Fitting length | 70 mm |
| Cable Length | 1000 mm |
| Cable diameter | 5.8 mm |
| Wire section | 2 x 2,0 + 3 x 0,14 mm² |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 20 / 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 MΩ |
Material
| Material jacket | PVC |
|---|---|
| Insulation wire | FEP |
| Material of contact | Phosphor Bronze |
| Contact plating | Gold over Nickel |
