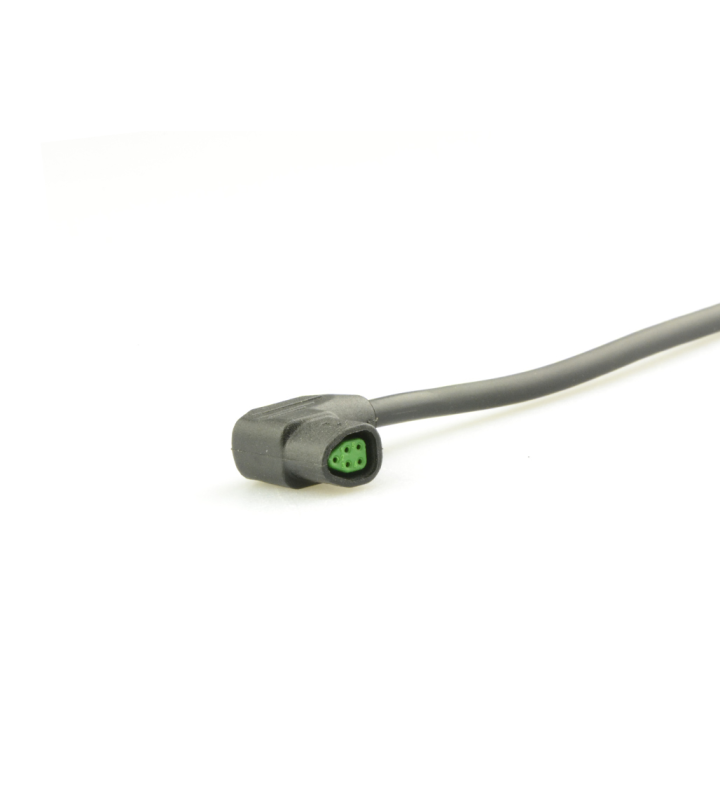

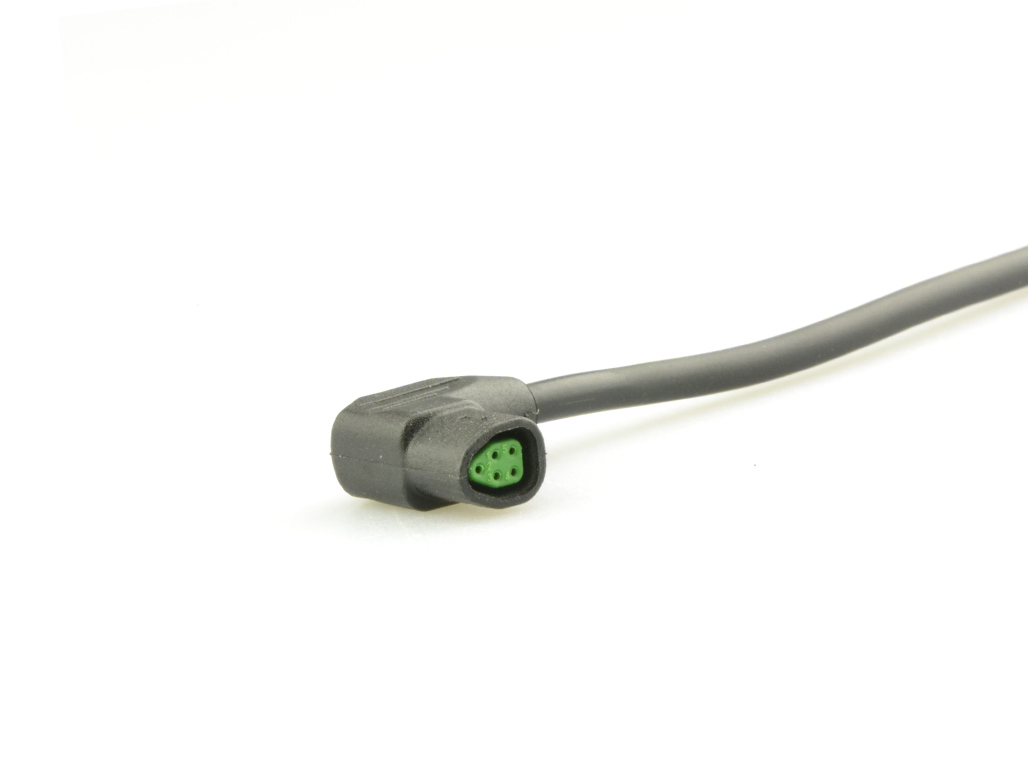

Mini F Female angled plug connector
Z509FM A 00 A3 1000
Ask for a quote Add favouriteGeneral Characteristics
| Number of contacts | 5 |
|---|---|
| Connector shape | Angled plug |
| Gender | Female |
| Color | Green |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Locking | Push-on (no locking) |
| Protection degree | IP66 |
| Mating cycles (times) | 200 Mating times |

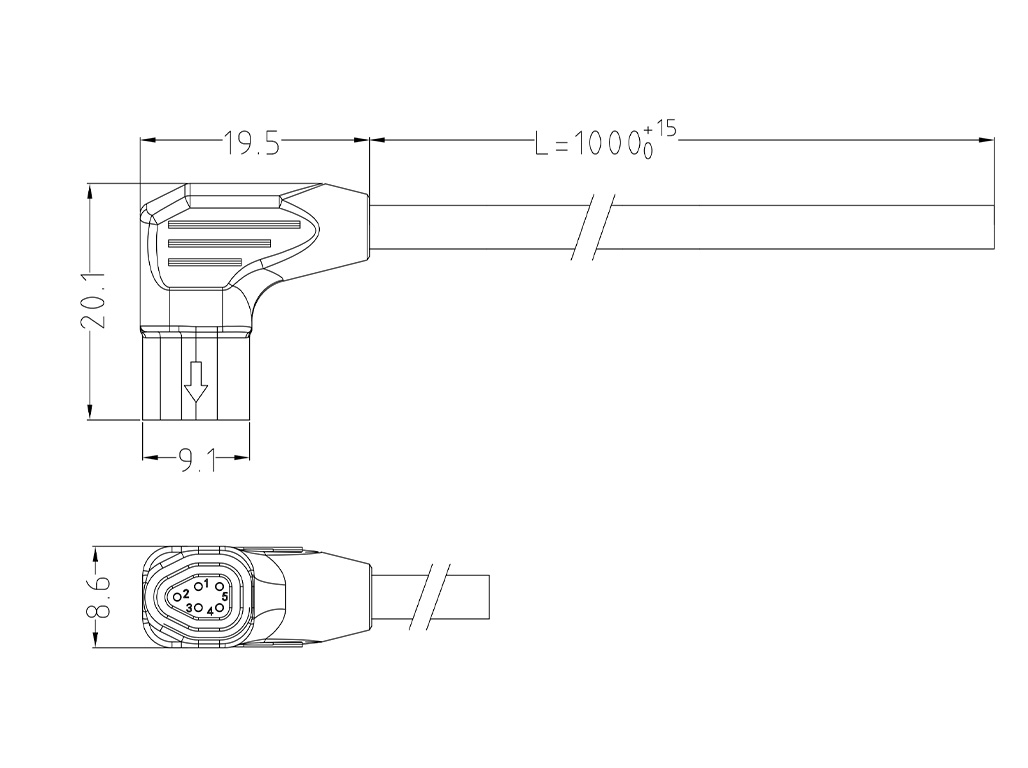

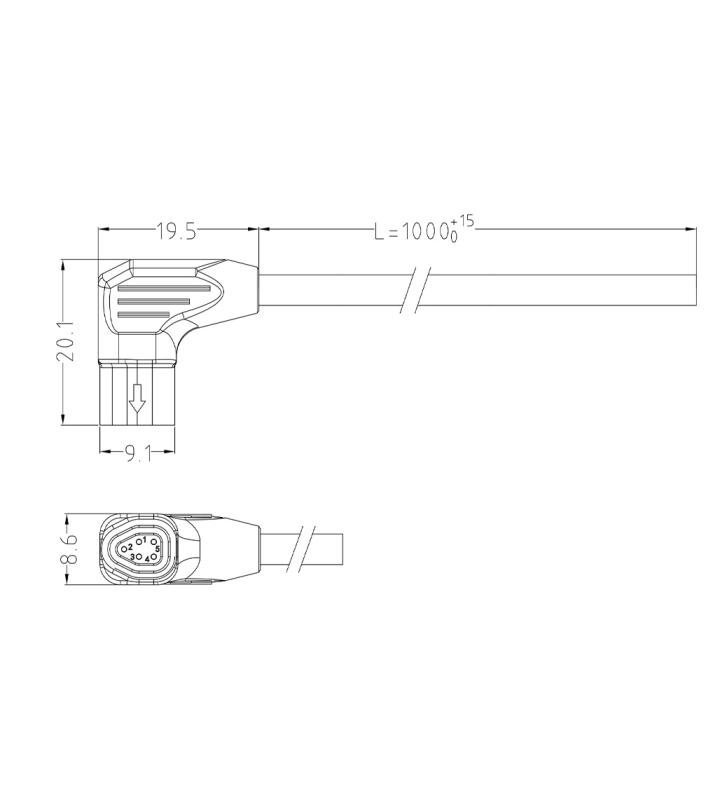

| Connector diameter | 8,6 x 7,3 mm |
| Fitting length | 20 mm |
| Cable Length | 1000 mm |
| Cable diameter | 3.7 mm |
| Wire section | 5 x 0,14 mm² |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 MΩ |
Material
| Material jacket | TPU |
|---|---|
| Insulation wire | Teflon |
| Material of contact | Copper Alloy |
| Contact plating | Gold over Nickel |
