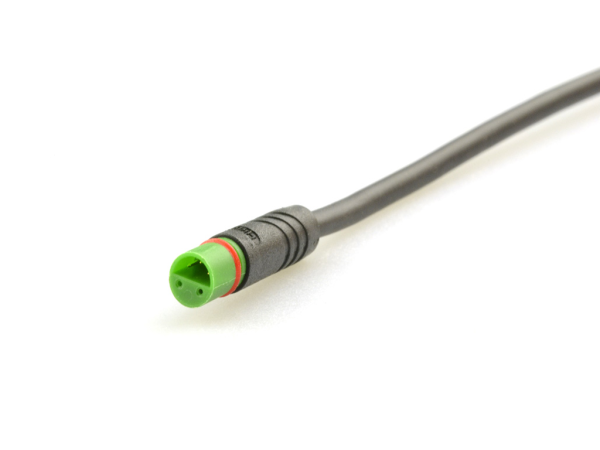

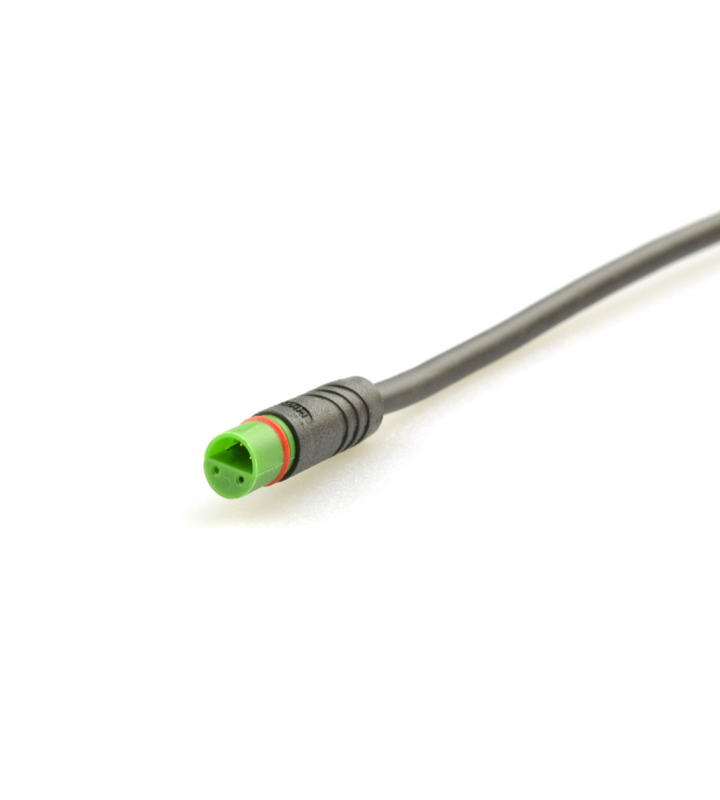

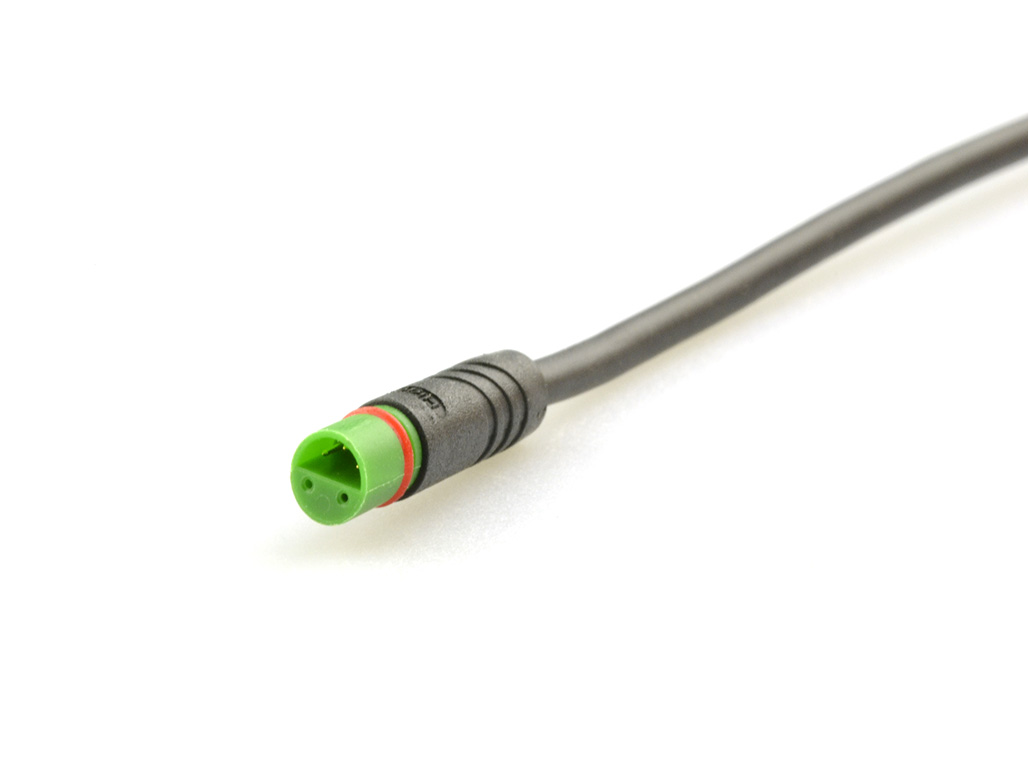

Micro Q female plug connector
Z506QM P 00 BS 1000
Ask for a quote Add favouriteGeneral Characteristics
| Number of contacts | 5 |
|---|---|
| Connector shape | Plug |
| Gender | Female |
| Color | Green |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Locking | Push-on (no locking) |
| Protection degree | IP67 |
| Mating cycles (times) | 50 Mating times |

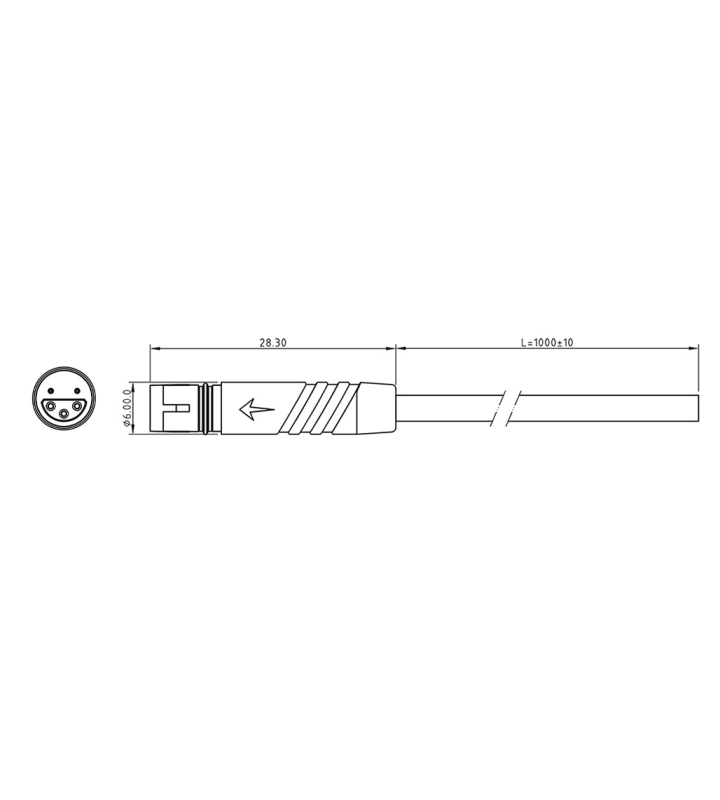

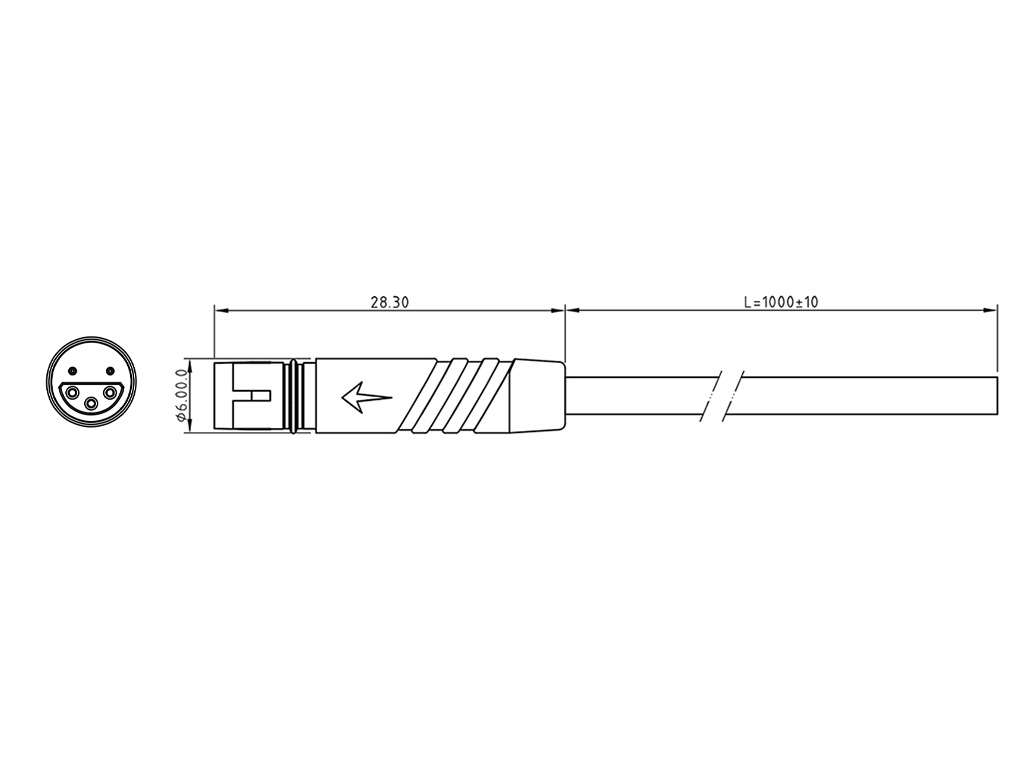

| Connector diameter | 6 mm |
| Fitting length | 50 mm |
| Cable Length | 1000 mm |
| Cable diameter | 3,0 mm |
| Wire section | 5 x 0,14 mm² |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 MΩ |
Material
| Material jacket | PVC |
|---|---|
| Insulation wire | FEP |
| Material of contact | Copper Alloy |
| Contact plating | Gold over Nickel |
Variants
| Article number | Cable diameter |
|---|---|
| Z506QM P 00 FW 1000 | 2.8 mm |
