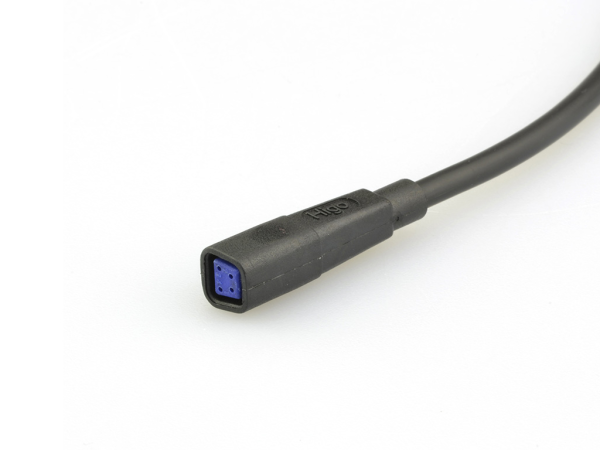

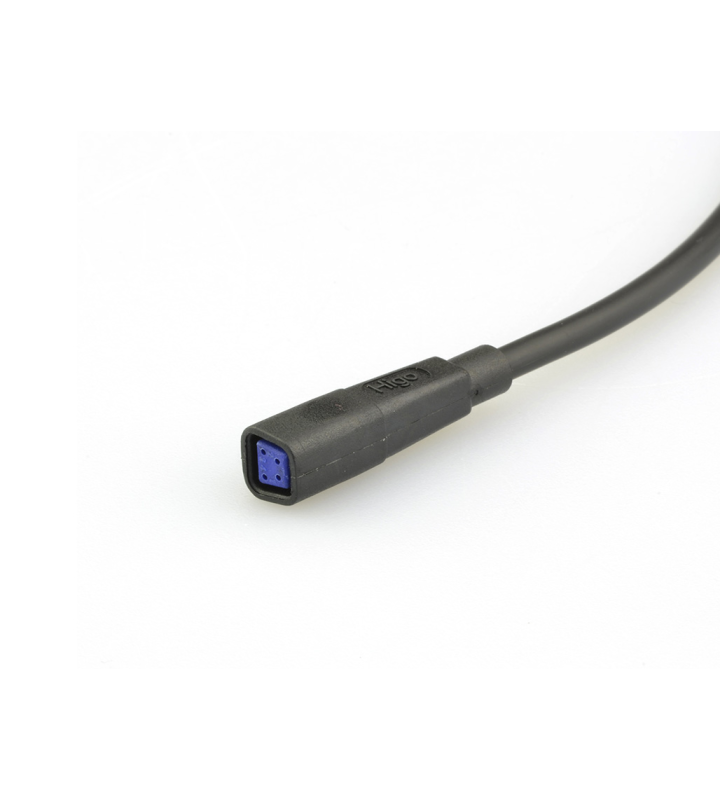

Mini F female cable connector
Z409FM P 00 AY 1000
Ask for a quote Add favouriteGeneral Characteristics
| Number of contacts | 4 |
|---|---|
| Connector shape | Plug |
| Gender | Female |
| Color | Blue |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Locking | Push-on (no locking) |
| Protection degree | IP66/IP67 |
| Mating cycles (times) | 200 Mating times |

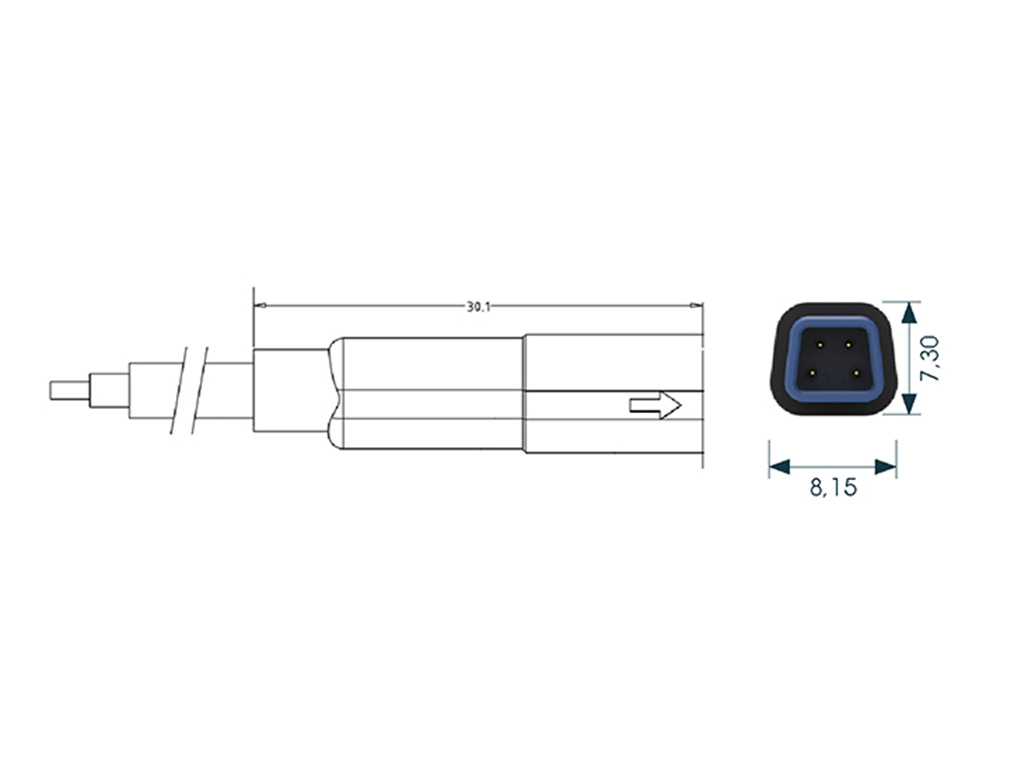

| Connector diameter | see drawing mm |
| Fitting length | 54 mm |
| Cable Length | 1000 mm |
| Cable diameter | 3.7 mm |
| Wire section | 0.14 mm² |
Electrical Parameters
| Rated current | 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 MΩ |
Material
| Material jacket | TPU |
|---|---|
| Insulation wire | Teflon |
| Material of contact | / |
Variants
| Article number | Material jacket | Insulation wire |
|---|---|---|
| Z409FM P 00 A2 1000 | PVC | PVC |
