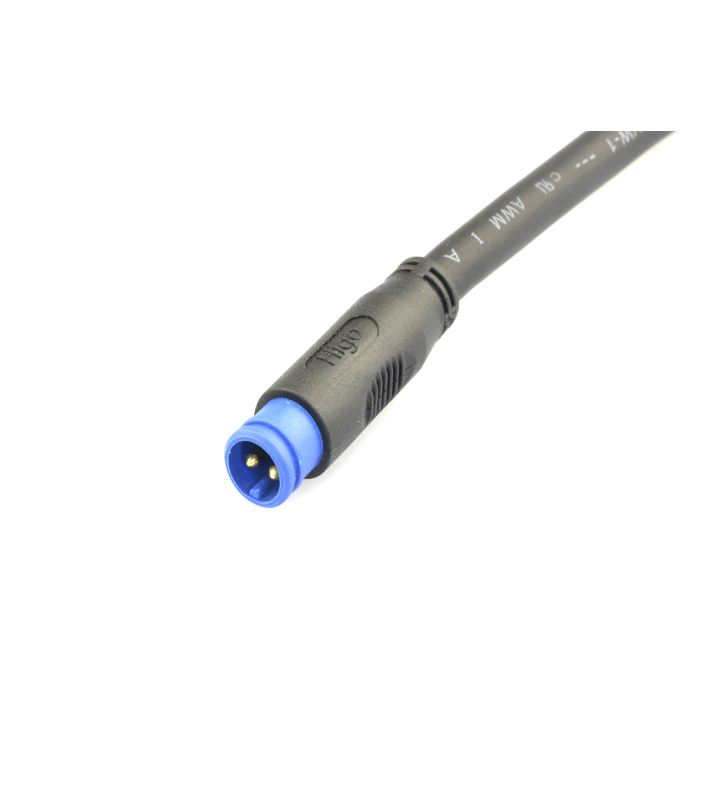

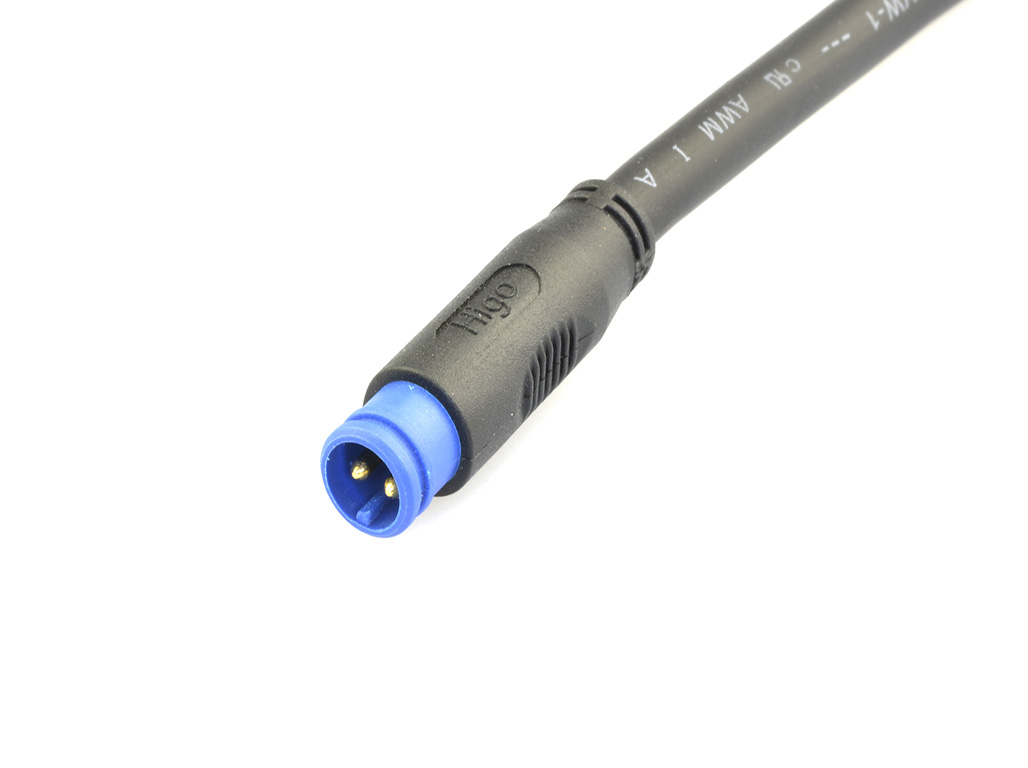

Male cable connector
Z409EG P 00 D5 1000
Ask for a quote Add favouriteGeneral Characteristics
| Connector shape | Plug |
|---|---|
| Gender | Male |
| Color | Blue |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Locking | Push-on (no locking) |
| Protection degree | IPX7 |
| Mating cycles (times) | 200 Mating times |

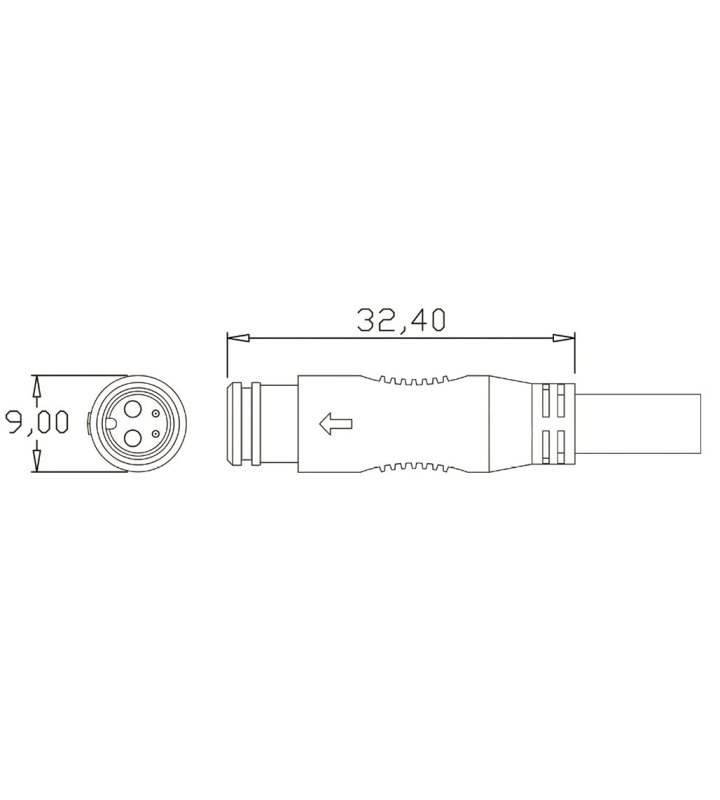

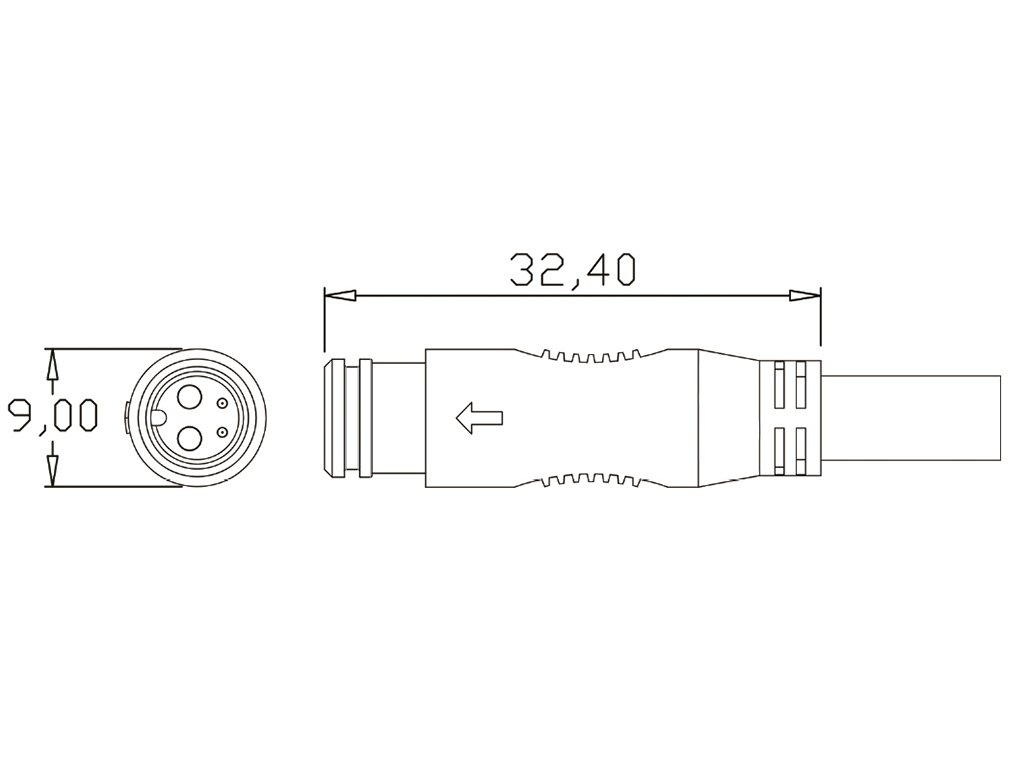

| Connector diameter | 9 mm |
| Fitting length | 61 mm |
| Cable Length | 1000 mm |
| Cable diameter | 5.5 mm |
| Wire section | 2 x 1,0 + 2 x 0,14 mm² |
| Terminal type | NA |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 10 / 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 MΩ |
Material
| Material jacket | TPU |
|---|---|
| Insulation wire | FEP |
| Material of contact | 4 (2+2) Copper Alloy |
| Contact plating | Gold over Nickel |
Variants
| Article number | Rated current range (A) | Material jacket |
|---|---|---|
| Z409EG P 00 FE 1000 | >5 - ≤10 A | ≤5 A | PVC |
