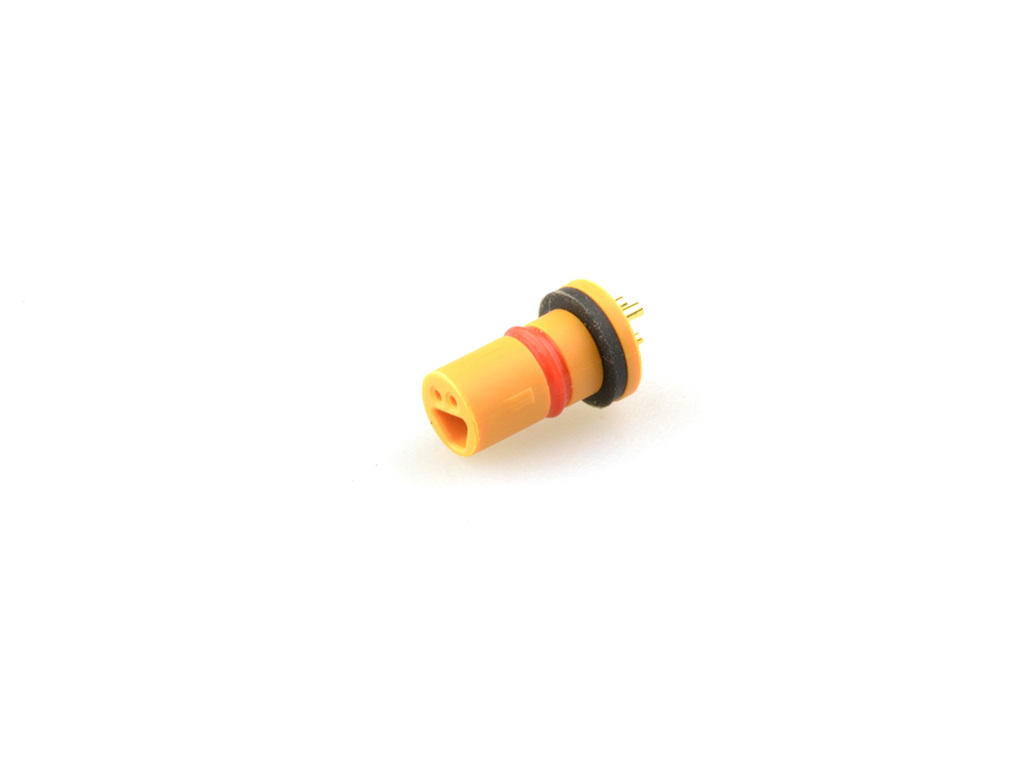

Micro Q female panel mount connector
Z306QM C 04 00 0000
Ask for a quote Add favouriteGeneral Characteristics
| Connector shape | Panel mount |
|---|---|
| Gender | Female |
| Color | Yellow |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Locking | Push-on (no locking) |
| Protection degree | IP67 |
| Mating cycles (times) | 50 Mating times |
| Connector diameter | 6 mm |
| Terminal type | IP67 |
Electrical Parameters
| Rated current | ≤5 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 MΩ |
Material
| Material of contact | 3 Copper Alloy |
|---|---|
| Contact plating | Gold over Nickel |
Variants
| Article number | Number of contacts | Color | Protection degree | Connector diameter | Rated current | Material of contact | IP Protection |
|---|---|---|---|---|---|---|---|
| Z606QM C 04 00 0000 | 6 | Black | IP66/IP67 | 19 mm | 2 A | Copper Alloy | IP66/IP67 |
