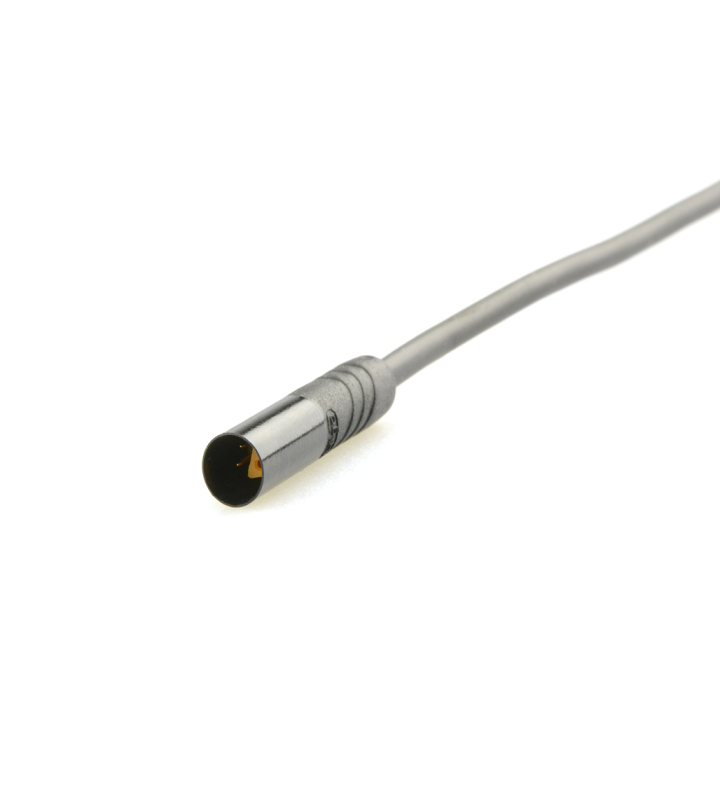

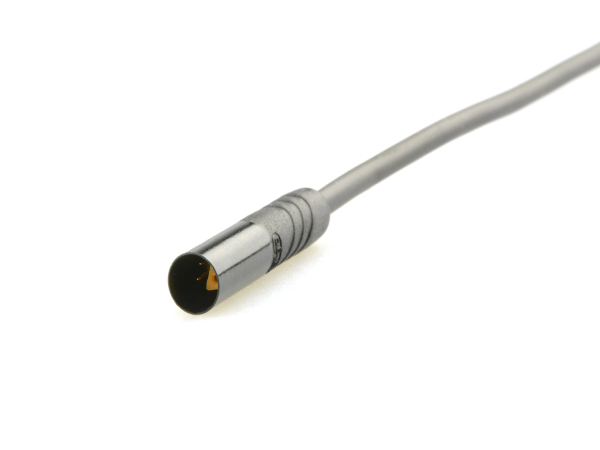

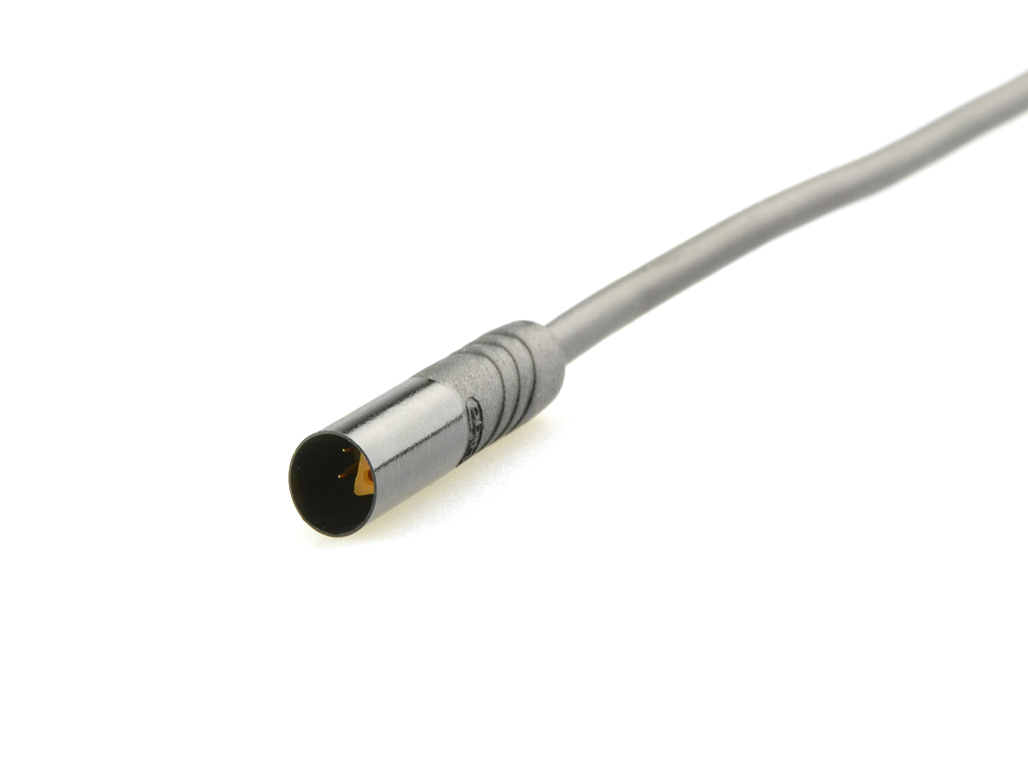

Z306QG P 00 EA 1000

Ask for a quote Add favourite

General Characteristics

Number of contacts 3
Gender Male
Color Yellow
Upper temperature 80 °C
Lower temperature -25 °C
Locking Push-on (no locking)
Protection degree IP67
Mating cycles (times) 50 Mating times

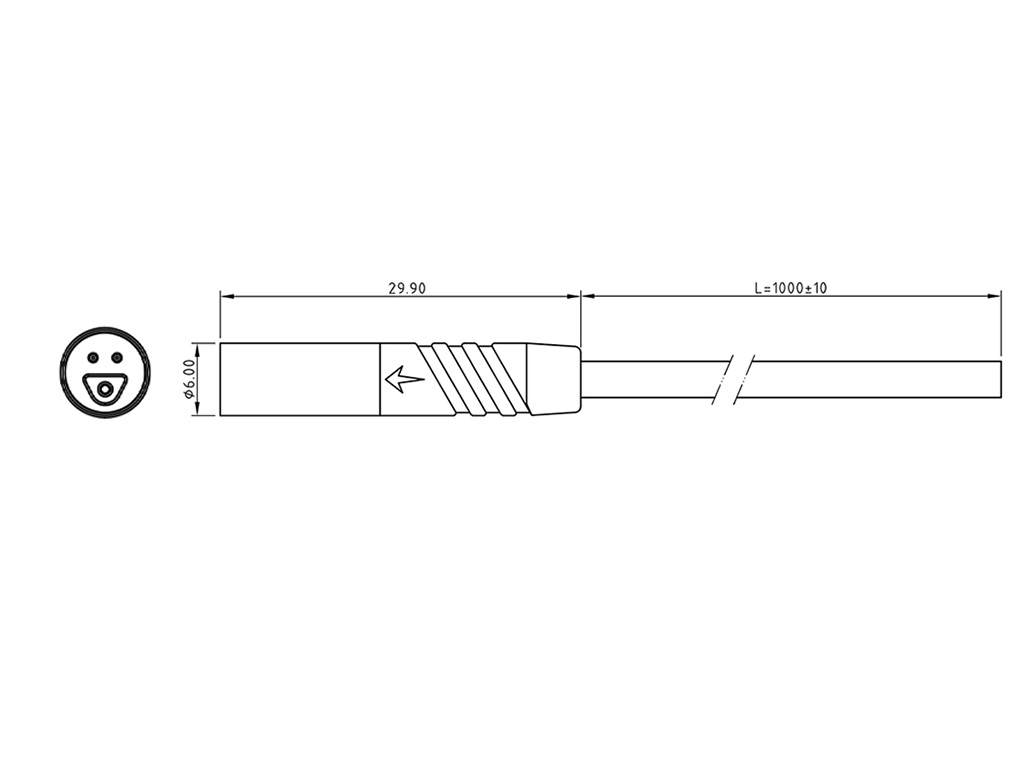

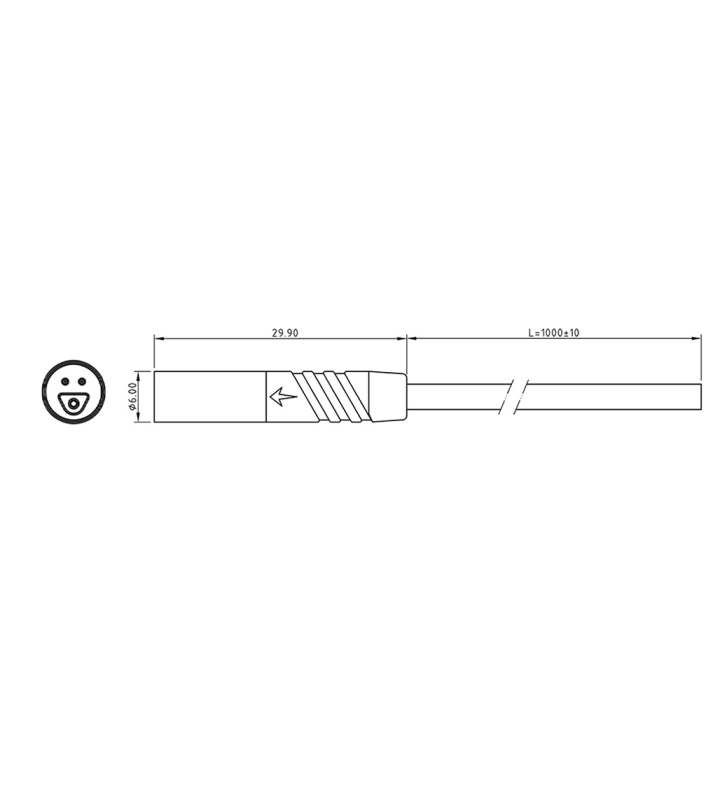

Connector diameter 6 mm
Fitting length 50 mm
Cable Length 1000 mm
Cable diameter 2.0 mm
Wire section 3 x 0,14 mm²
Remark Other cable length/type on request

Electrical Parameters

Rated current 2 A
Rated voltage 48 V AC / 60 V DC
Max. insulation resistance (MΩ) ≥20 MΩ
Max. contact resistance (MΩ) ≤10 MΩ

Material

Material jacket PVC
Insulation wire FEP
Material of contact Copper Alloy
Contact plating Gold over Nickel

Variants

Article number Cable diameter
Z306QG P 00 FG 1000 2.8 mm
