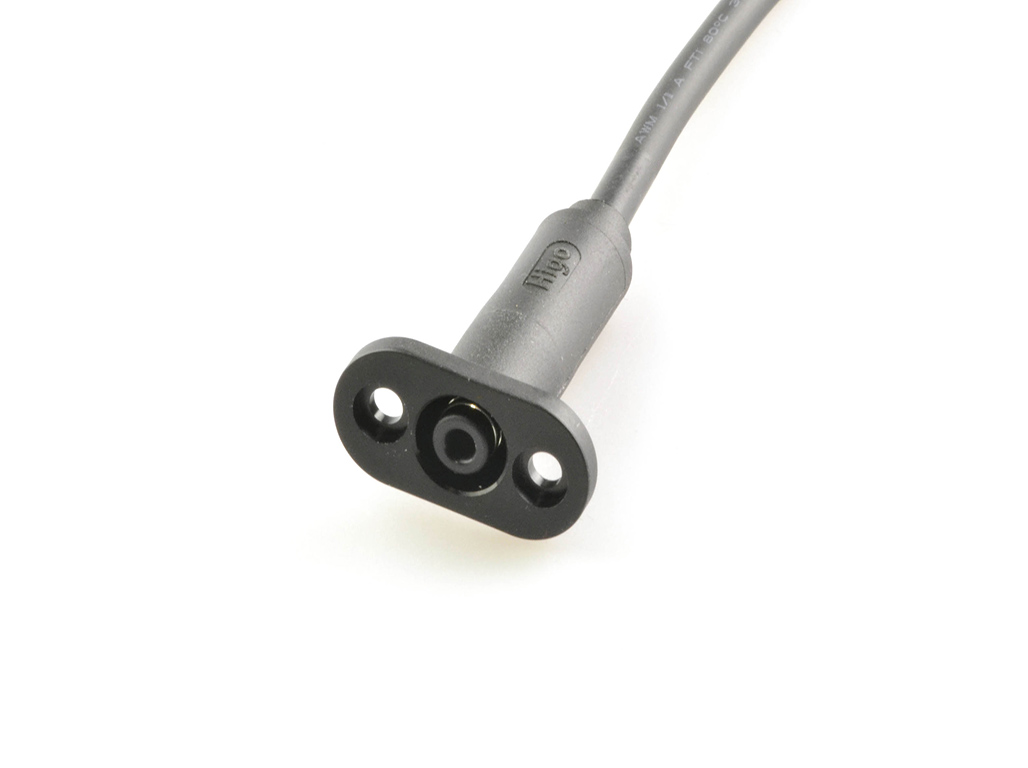

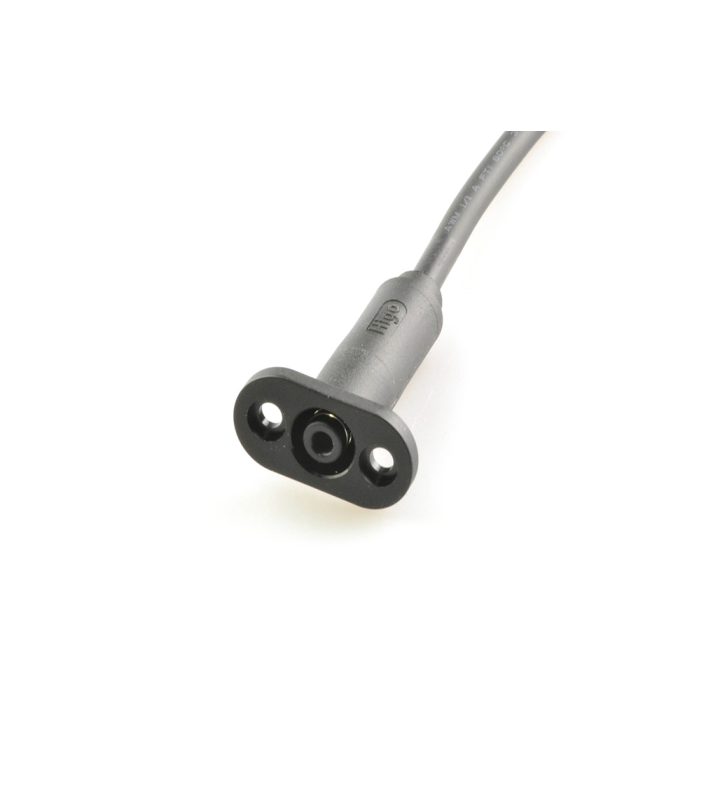

Female cable connector
Z212AM P 00 BW 1000
Ask for a quote Add favouriteGeneral Characteristics
| Connector shape | Plug |
|---|---|
| Gender | Female |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Locking | Push-on (no locking) |
| Protection degree | IP67 |
| Mating cycles (times) | 3000 Mating times |

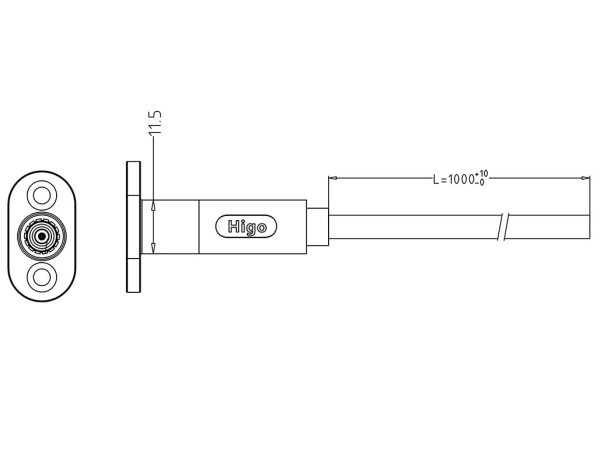

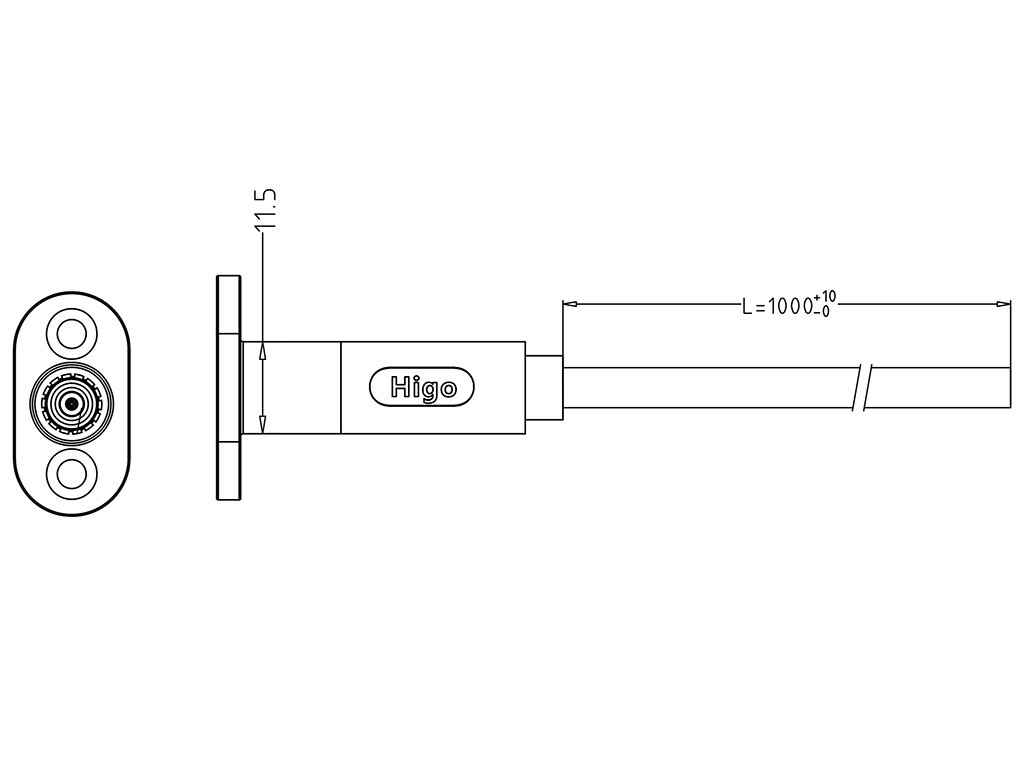

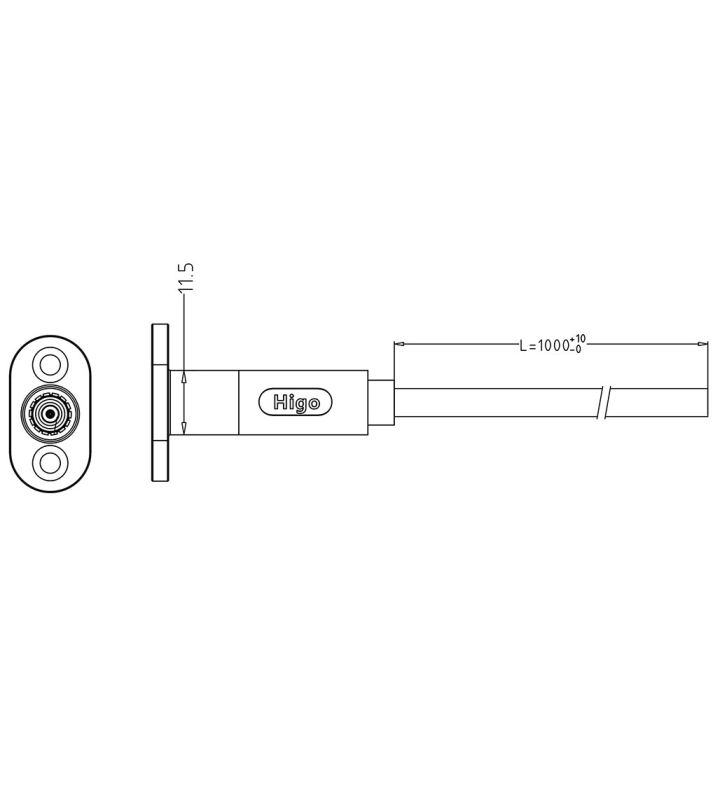

| Connector diameter | 11.5 mm |
| Fitting length | 30 mm |
| Cable Length | 1000 mm |
| Cable diameter | 5 mm |
| Wire section | 2 x 18AWG mm² |
| Terminal type | NA |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 8 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 MΩ |
Material
| Material jacket | PVC |
|---|---|
| Insulation wire | PVC |
| Material of contact | 2 Phosphor Bronze |
| Contact plating | Gold over Nickel |
