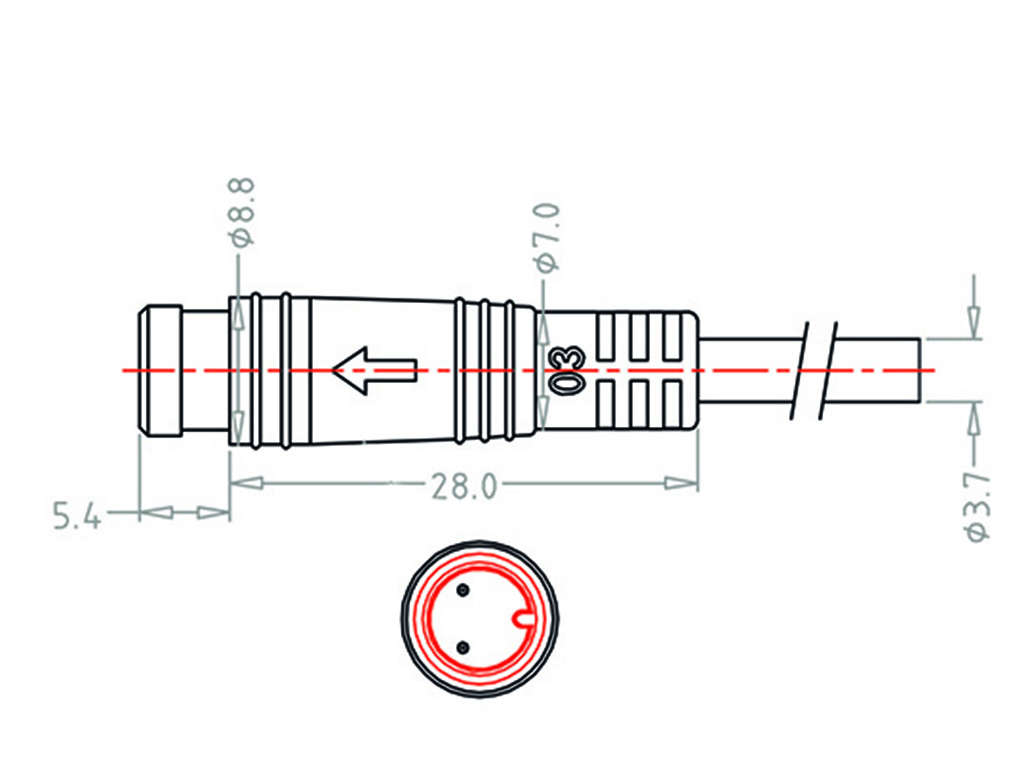

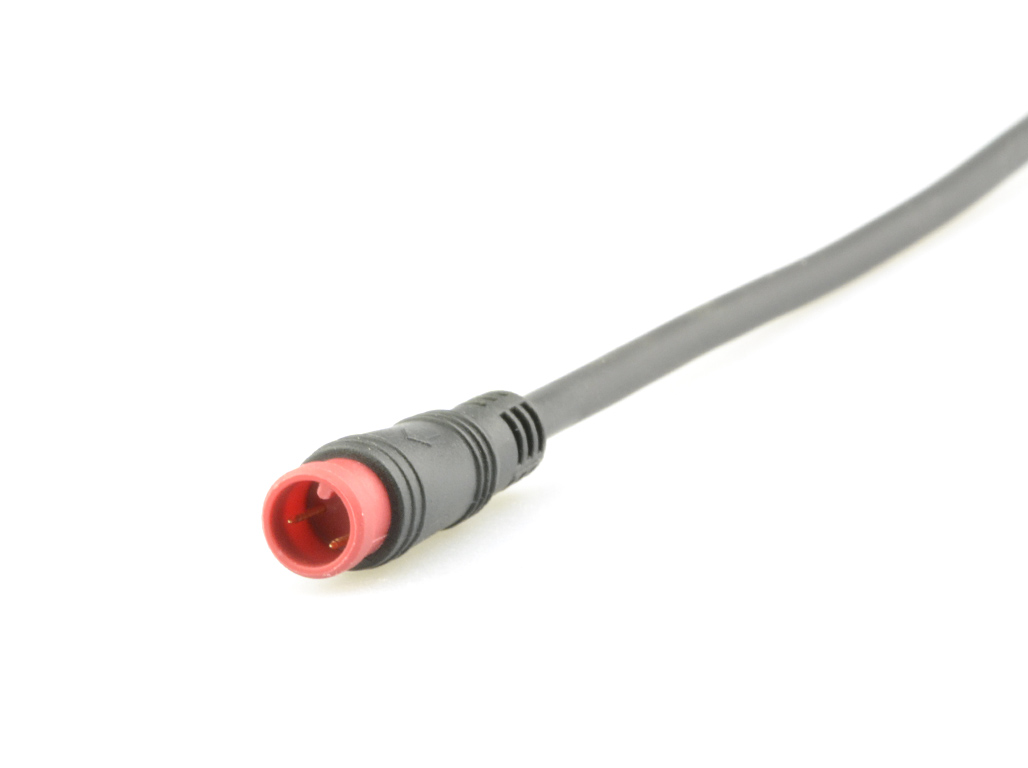

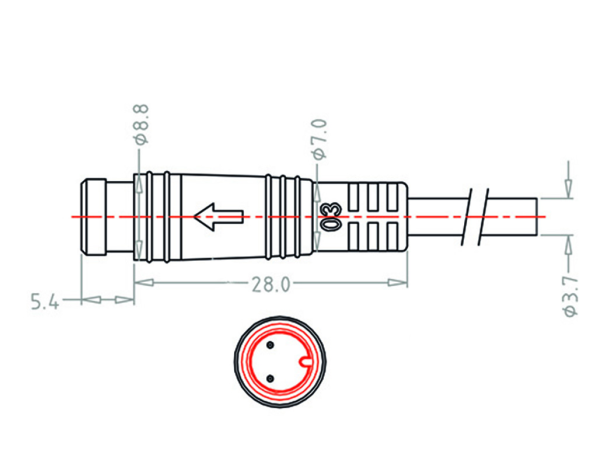

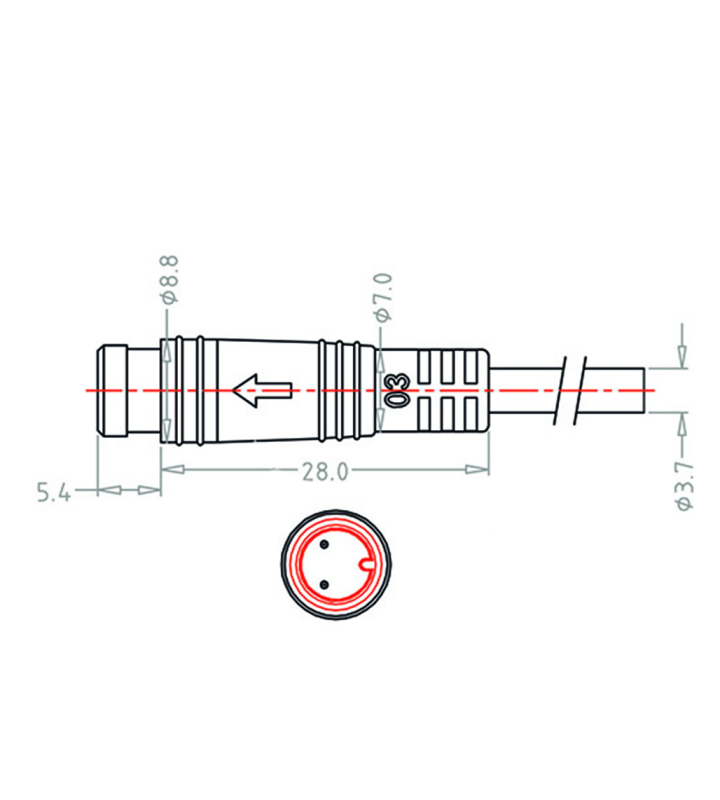

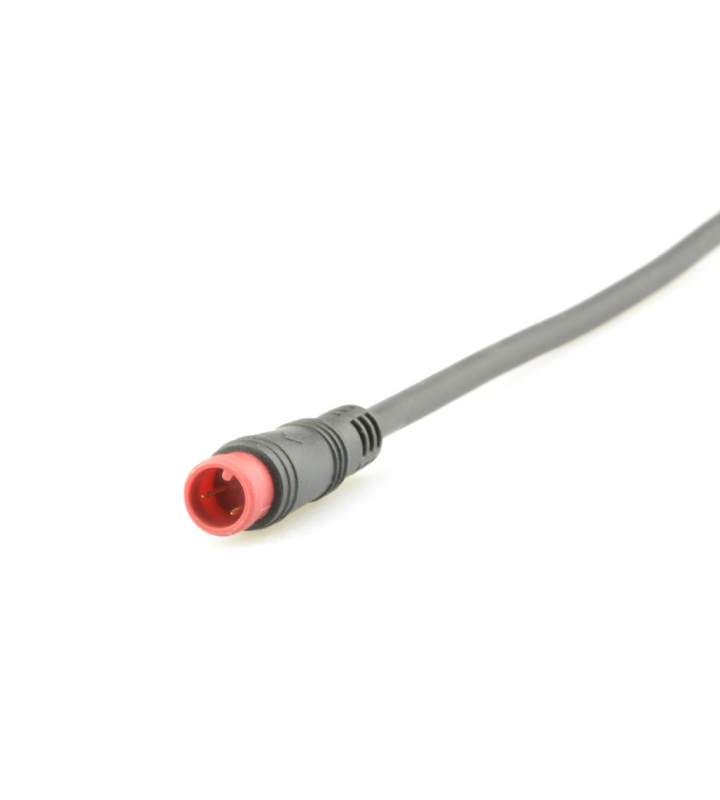

Mini B Male cable connector
Z209BG P 00 AW 1000
Ask for a quote Add favouriteGeneral Characteristics
| Number of contacts | 2 |
|---|---|
| Connector shape | Plug |
| Gender | Male |
| Color | Red |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Locking | Push-on (no locking) |
| Protection degree | IP66 |
| Mating cycles (times) | 200 Mating times |
| Connector diameter | 9 mm |
| Fitting length | 62 mm |
| Cable Length | 1000 mm |
| Cable diameter | 2.4 mm |
| Wire section | 0.14 mm² |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 MΩ |
Material
| Material jacket | TPU |
|---|---|
| Insulation wire | Teflon |
| Material of contact | Copper Alloy |
| Contact plating | Gold over Nickel |
Variants
| Article number | Cable diameter | Wire section | Material jacket | Insulation wire |
|---|---|---|---|---|
| Z209BG P 00 A0 1000 | 3.7 mm | 0.2 mm² | PVC | PVC |
