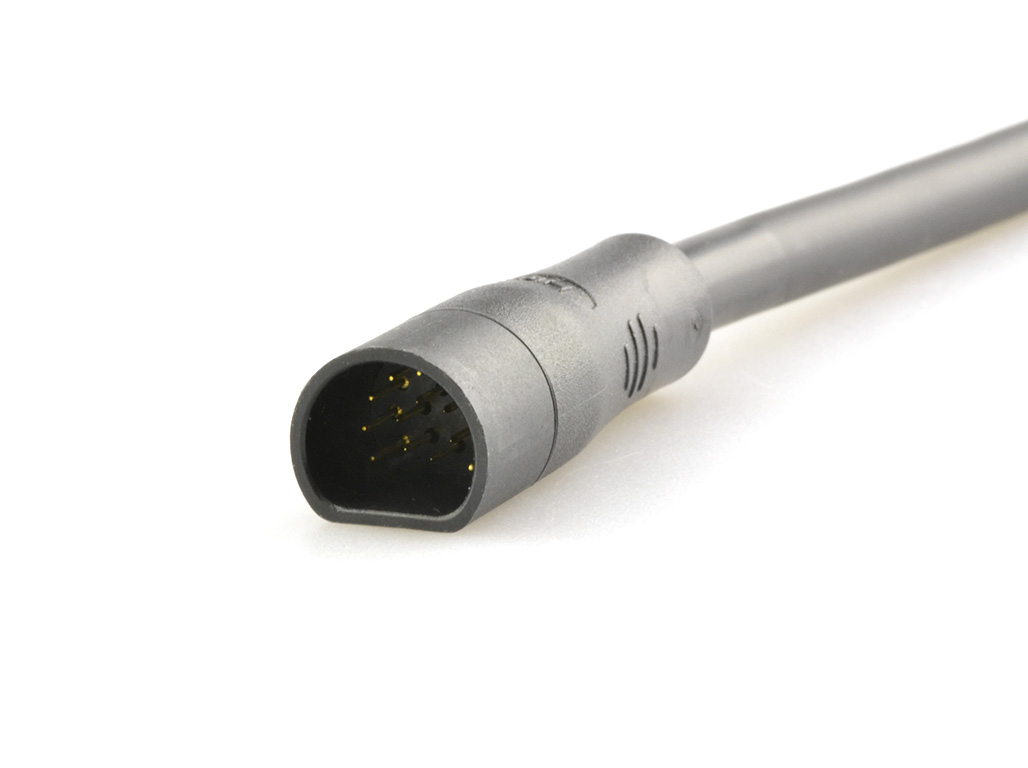

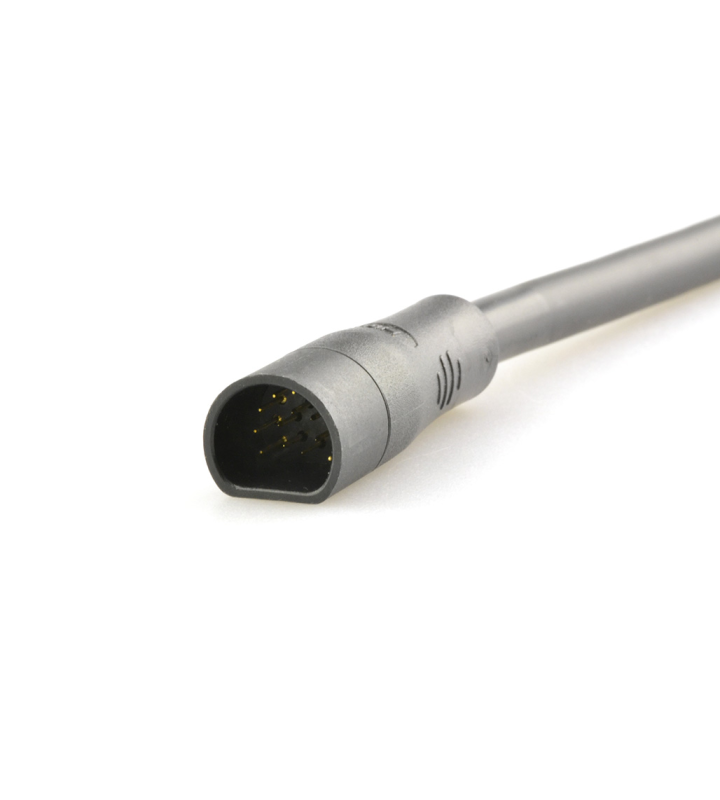

Male cable connector
Z1513AG P 00 BV 1000
Ask for a quote Add favouriteGeneral Characteristics
| Number of contacts | 15 |
|---|---|
| Connector shape | Plug |
| Gender | Male |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Locking | Push-on (no locking) |
| Protection degree | IP67 |
| Mating cycles (times) | 200 Mating times |

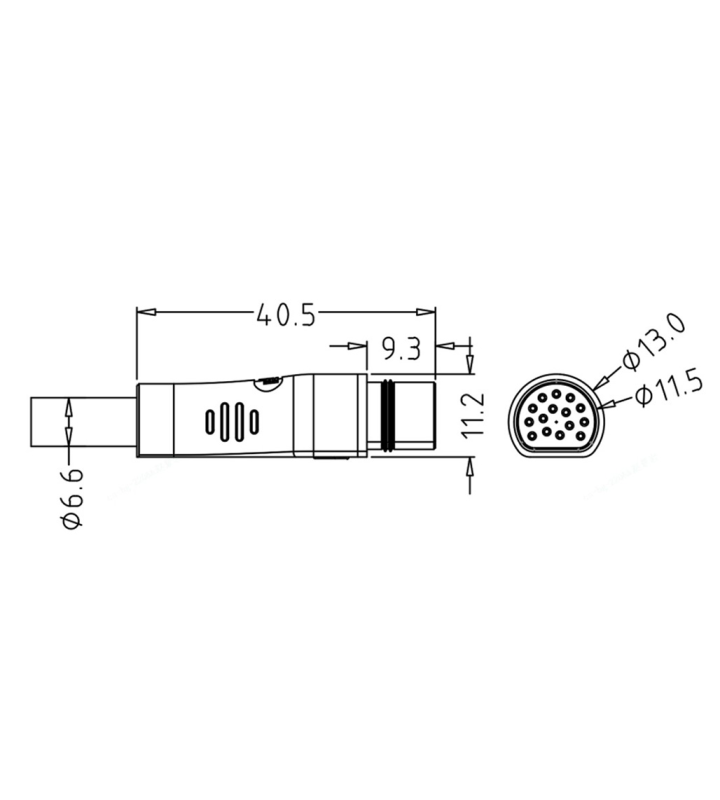

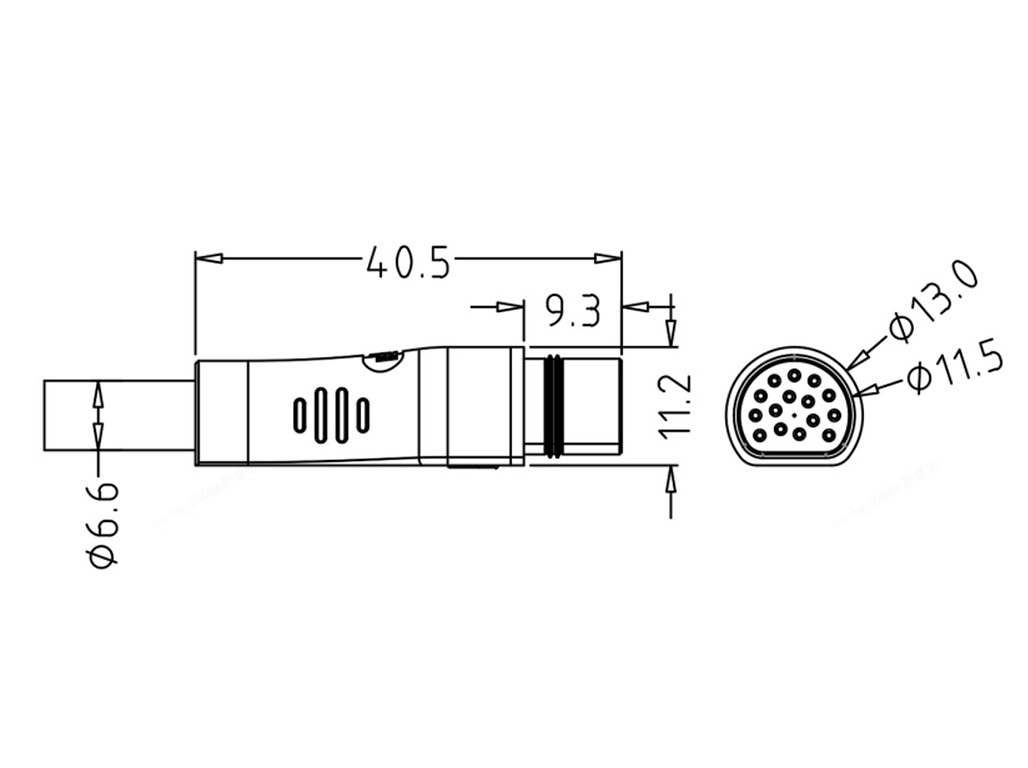

| Fitting length | 72 mm |
| Cable Length | 1000 mm |
| Cable diameter | 6.6 mm |
| Wire section | 15 x 0,14 mm² |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 2 A |
|---|---|
| Max. contact resistance (MΩ) | ≤10 MΩ |
Material
| Material jacket | PVC |
|---|---|
| Insulation wire | FEP |
| Material of contact | Phosphor Bronze |
| Contact plating | Gold over Nickel |
