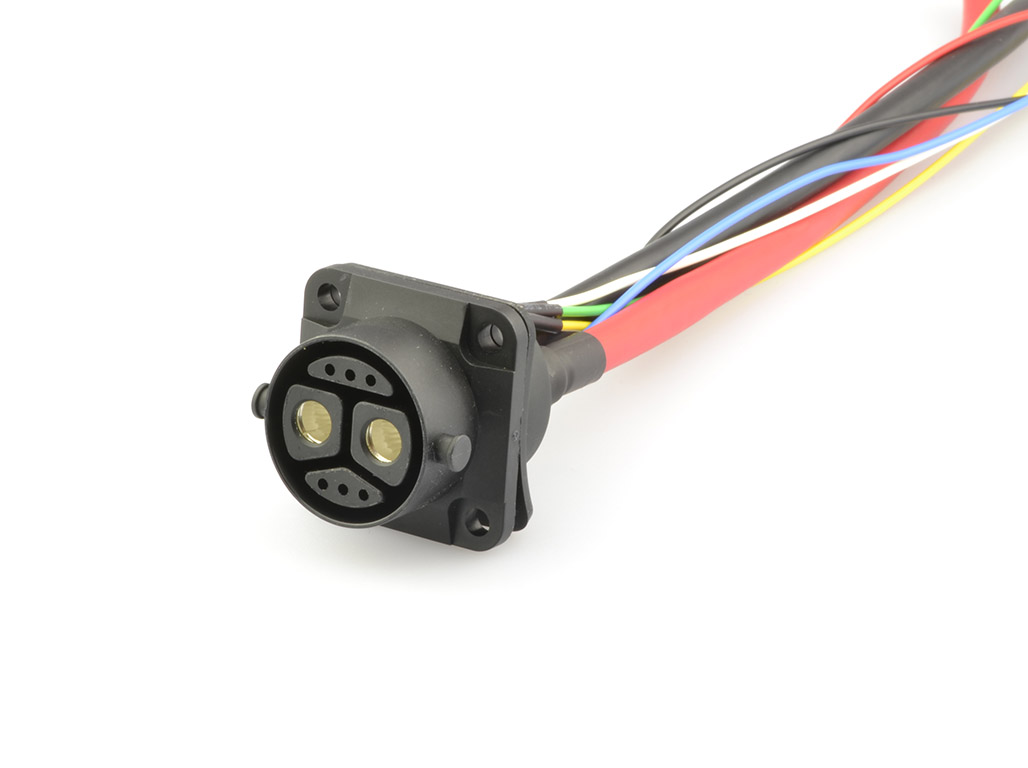

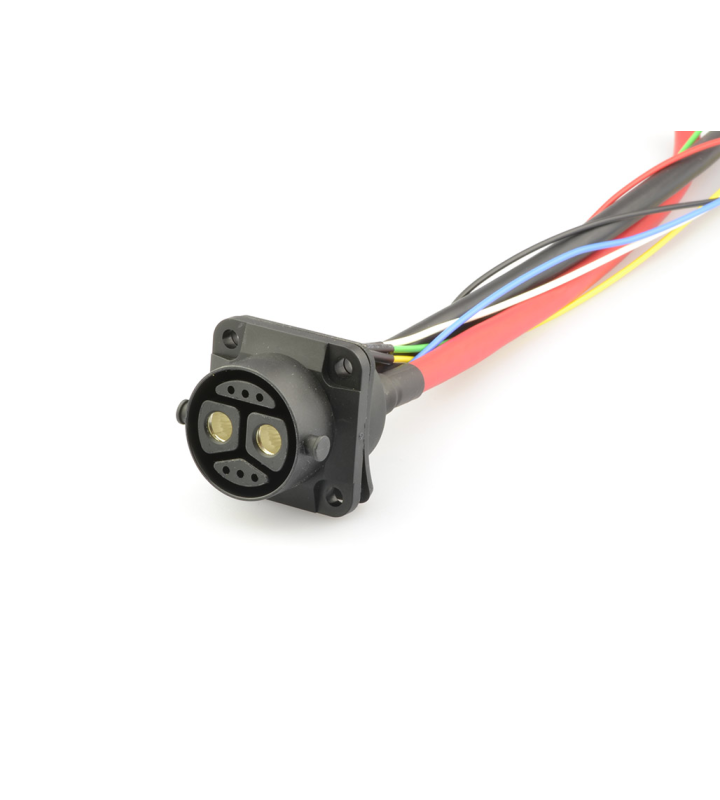

Female panel mount connector
S835AM C 03 HB 0300
Ask for a quote Add favouriteGeneral Characteristics
| Connector shape | Panel mount |
|---|---|
| Gender | Female |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Locking | Manual locking |
| Protection degree | IP67 |
| Mating cycles (times) | 3000 Mating times |

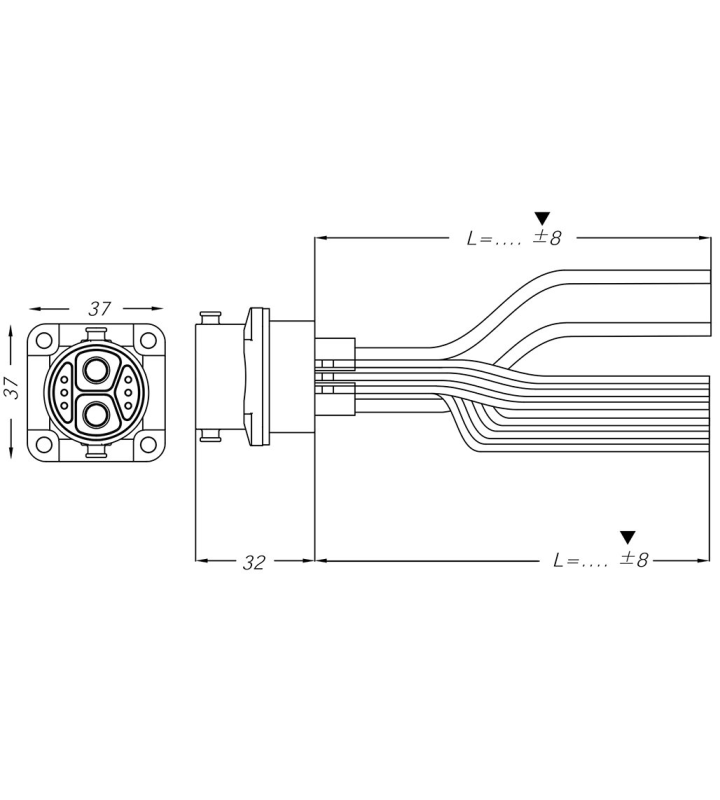

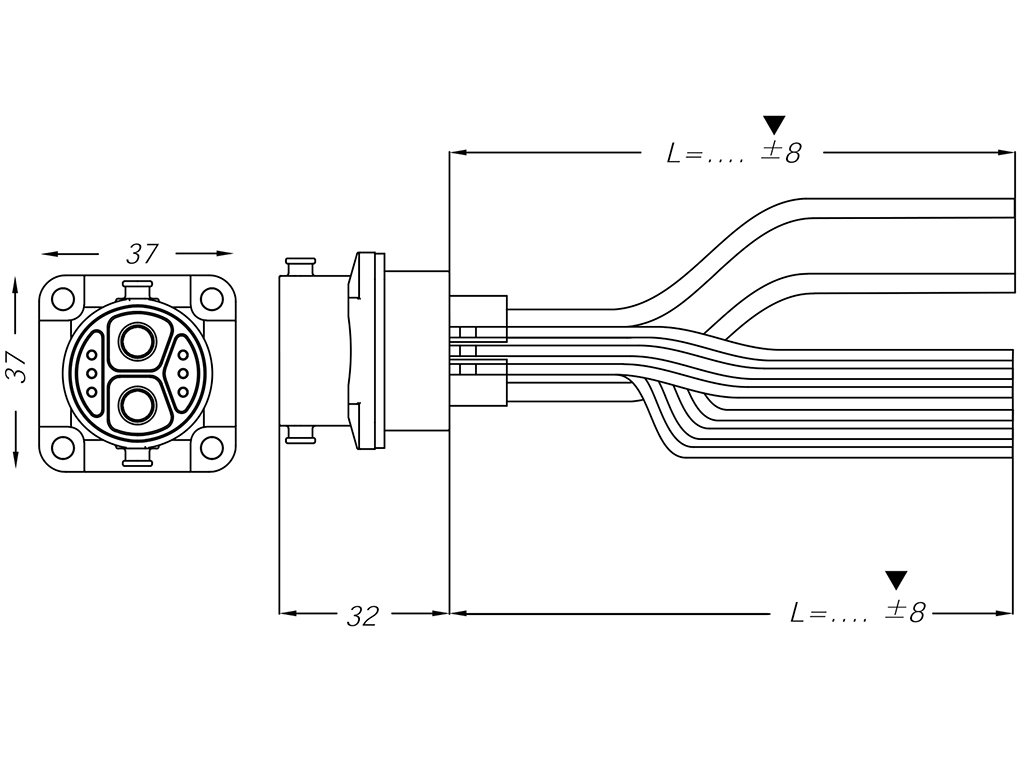

| Connector diameter | 37 x 37 mm |
| Cable Length | 300 mm |
| Wire section | 2 x 16,0 + 6 x 0,5 mm² |
| Terminal type | NA |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 100 / 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 MΩ |
Material
| Insulation wire | PVC |
|---|---|
| Material of contact | 8 (2+6) Phosphor Bronze |
| Contact plating | Silver plated |
