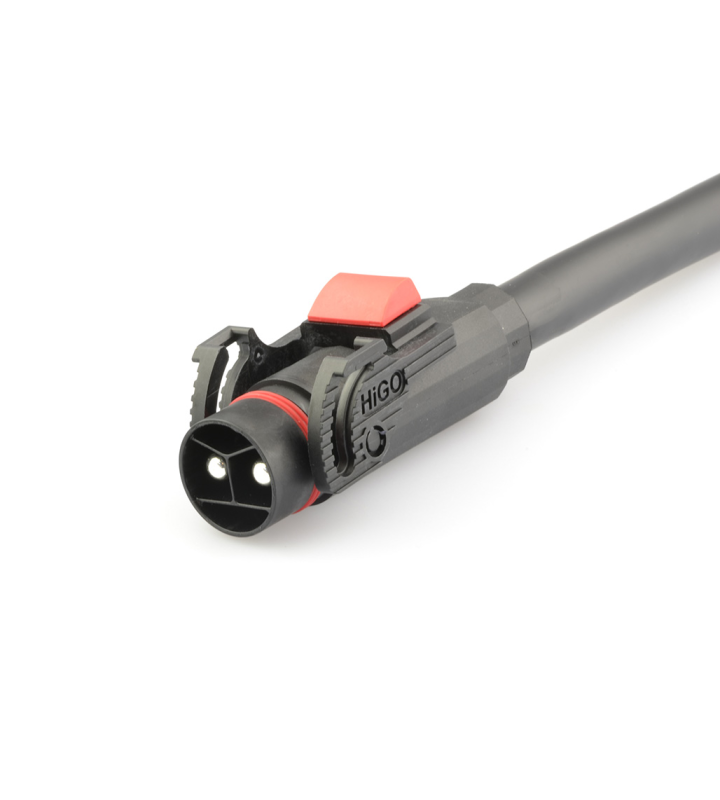

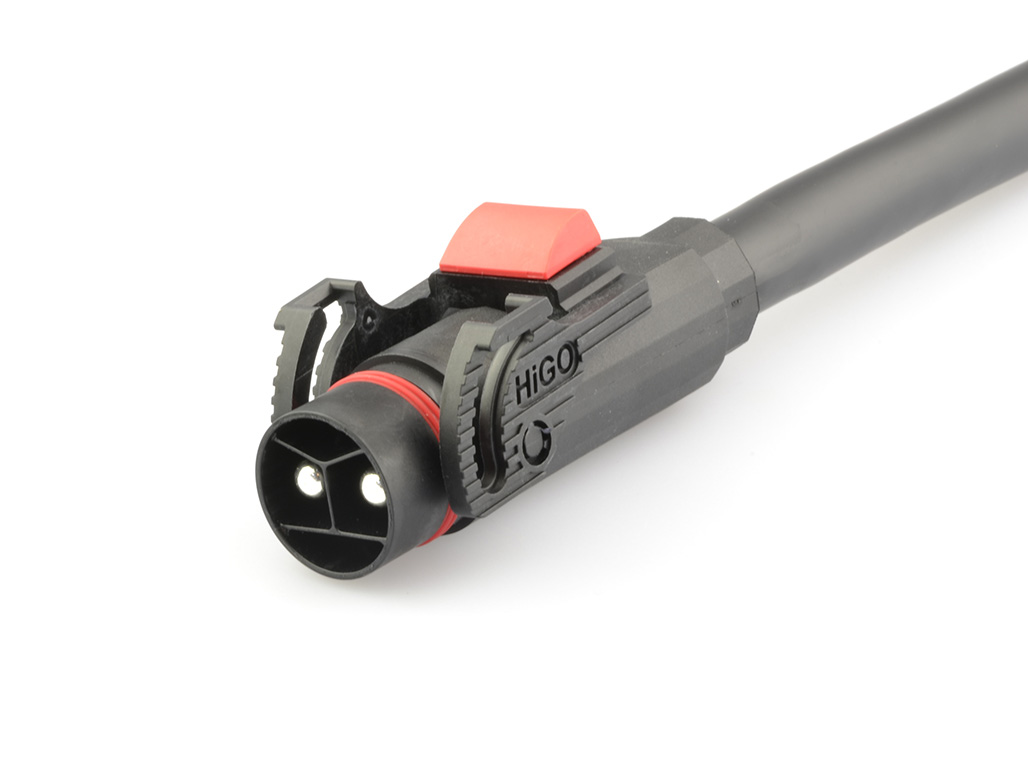

Male cable connector
Manual Locking
S835AG P 00 HA 1000
Ask for a quote Add favouriteGeneral Characteristics
| Number of contacts | 8 (2+6) |
|---|---|
| Gender | Male |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Locking | Manual locking |
| Protection degree | IP67 |
| Mating cycles (times) | 3000 Mating times |
| Connector diameter | 19 mm |
| Fitting length | 97 mm |
| Cable Length | 1000 mm |
| Cable diameter | 17 mm |
| Wire section | 2 x 16,0 + 6 x 0,5 mm² |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 100 / 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 MΩ |
Material
| Material jacket | PVC |
|---|---|
| Insulation wire | PVC |
| Material of contact | Copper alloy |
| Contact plating | Silver plated |
