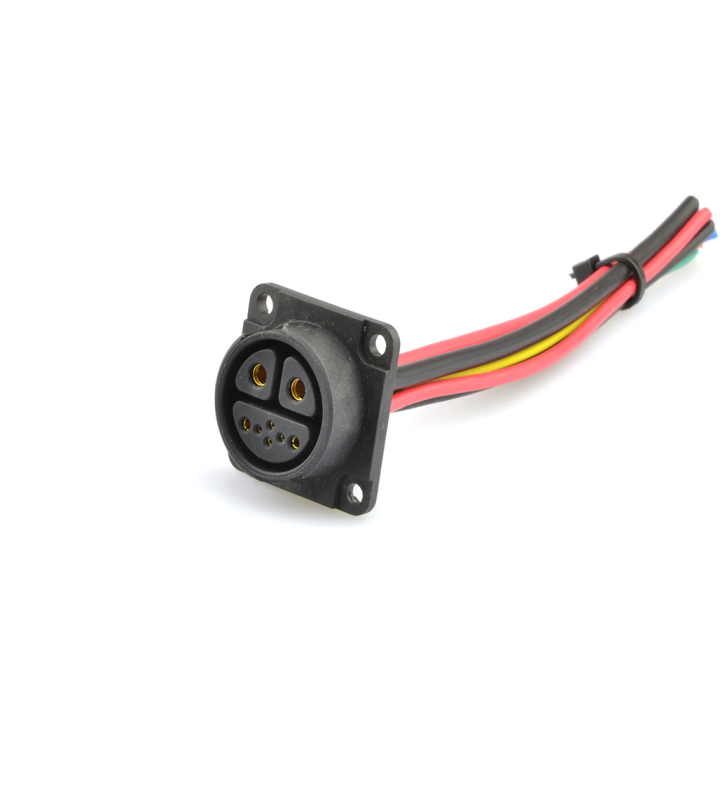

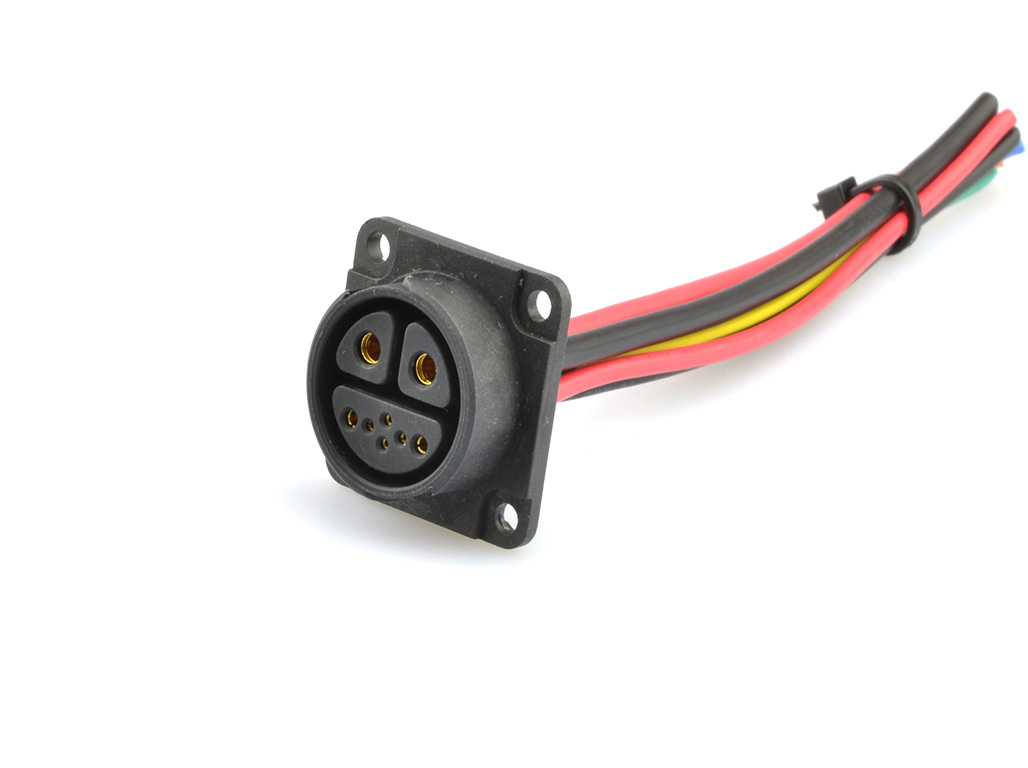

Female panel mount connector, self-locking
S828AM C 03 FN 0300
Ask for a quote
Add favourite
General Characteristics
|
Number of contacts
|
8 (2+2+4)
|
|
Connector shape
|
Panel mount
|
|
Gender
|
Female
|
|
Color
|
Black
|
|
Upper temperature
|
80 °C
|
|
Lower temperature
|
-25 °C
|
|
Locking
|
Self-locking
|
|
Protection degree
|
IP67
|
|
Mating cycles (times)
|
3000 Mating times
|
|
Connector diameter
|
14 mm
|
|
Cable Length
|
300 mm
|
|
Wire section
|
2 x 2,5 + 2 x 1,3 + 4 x 0,2 mm²
|
|
Remark
|
Other cable length/type on request
|
Electrical Parameters
|
Rated current
|
25 / 10 / 2 A
|
|
Rated voltage
|
48 V AC / 60 V DC
|
|
Max. insulation resistance (MΩ)
|
≥20 MΩ
|
|
Max. contact resistance (MΩ)
|
≤10 MΩ
|
Material
|
Material of contact
|
Phosphor Bronze
|
|
Contact plating
|
Gold over Nickel
|
