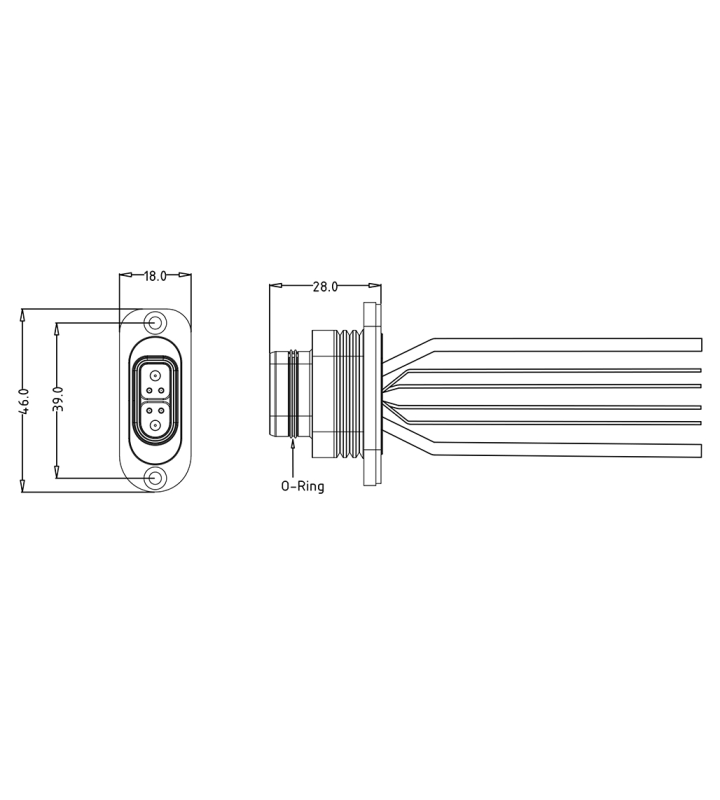

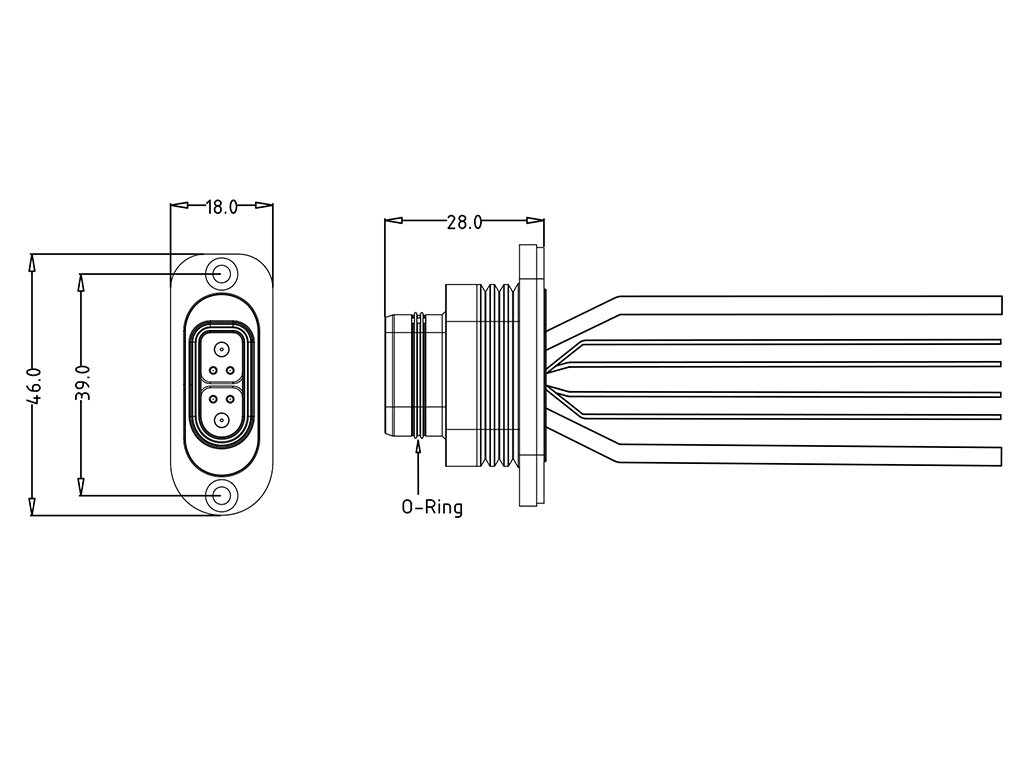

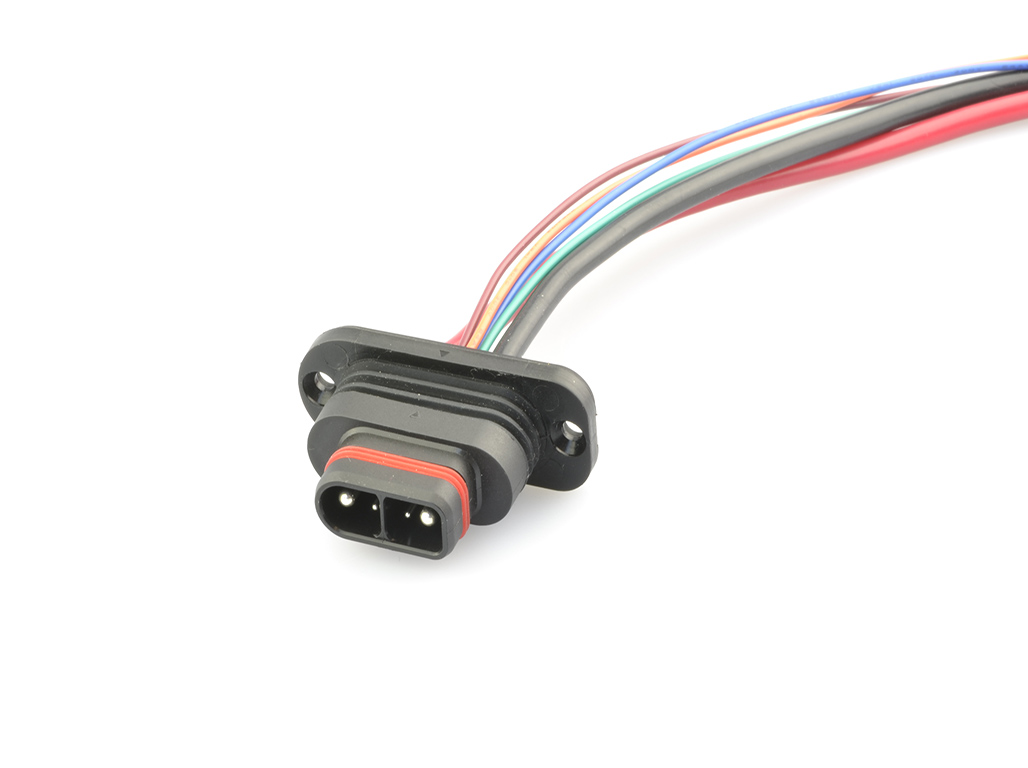

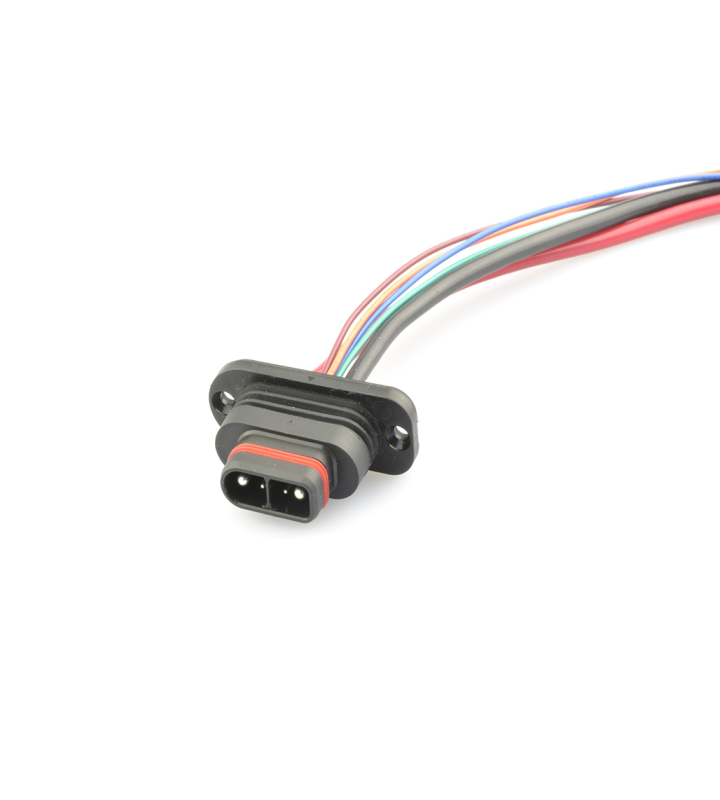

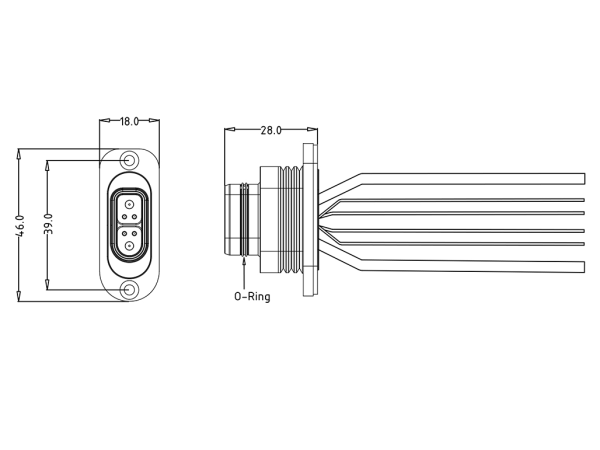

Male panel mount connector
Push-on flexible
F621AG C 00 GA 0300
Ask for a quote Add favouriteGeneral Characteristics
| Number of contacts | 6 (2+4) |
|---|---|
| Connector shape | Panel mount |
| Gender | Male |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Locking | Push-on flexible |
| Protection degree | IP67 |
| Mating cycles (times) | 3000 Mating times |
| Connector diameter | 26,0 x 26,0 mm |
| Cable Length | 300 mm |
| Wire section | 2 x 3,3 + 4 x 0,2 mm² |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 30 / 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 MΩ |
Material
| Insulation wire | PVC |
|---|---|
| Material of contact | Phosphor Bronze |
| Contact plating | Silver plated |
