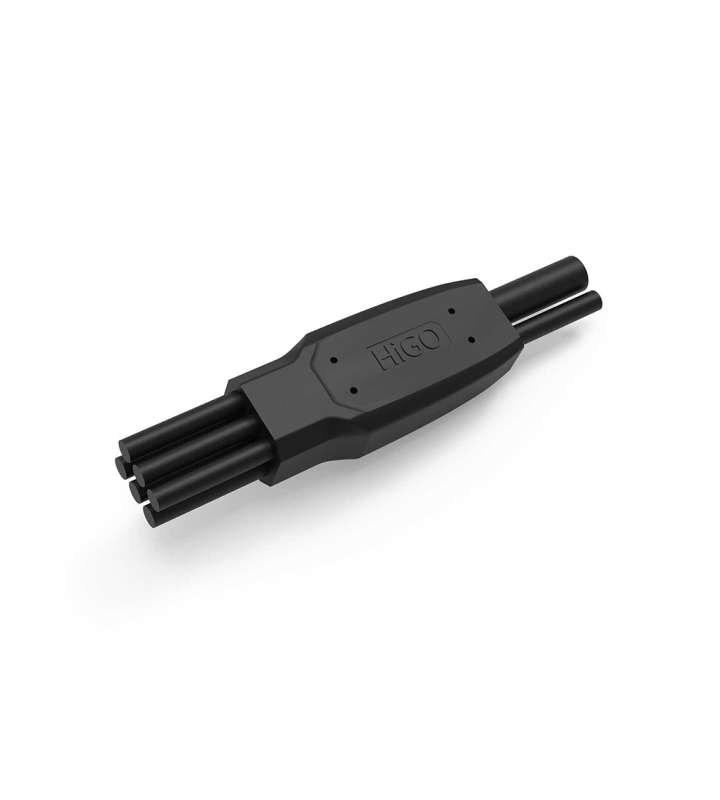

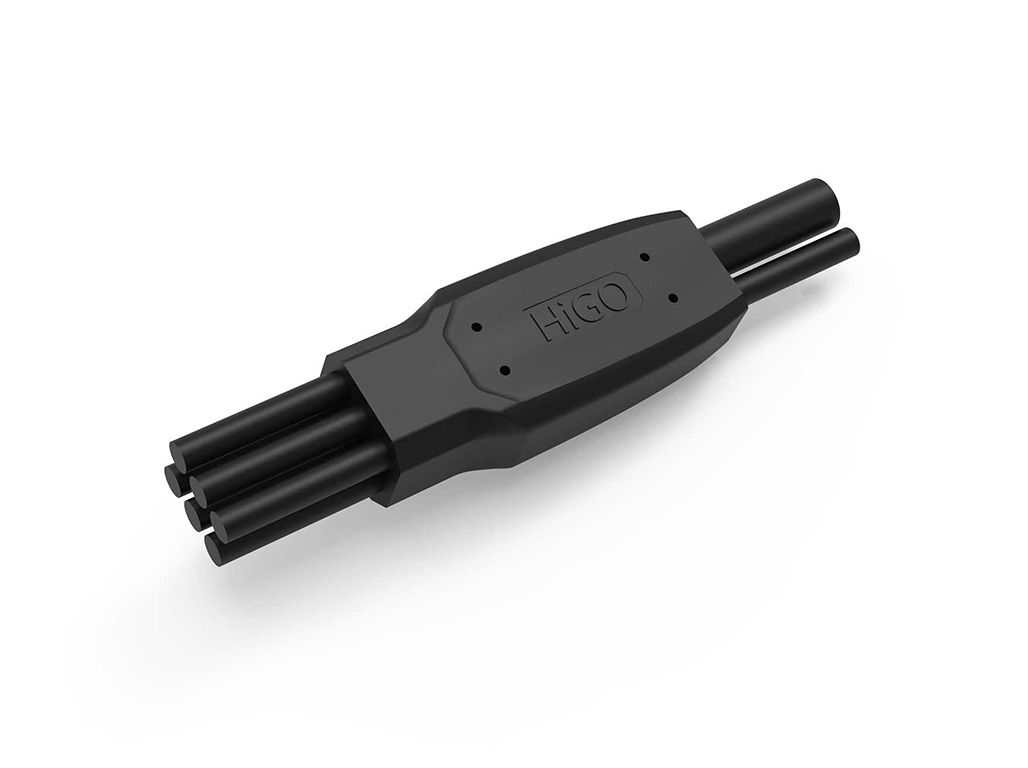

Splitter series 2T6A
2T6A
Ask for a quote Add favouriteGeneral Characteristics
| Upper temperature | 80 °C |
|---|---|
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Wire section | 0,14 / 0,2 mm² |

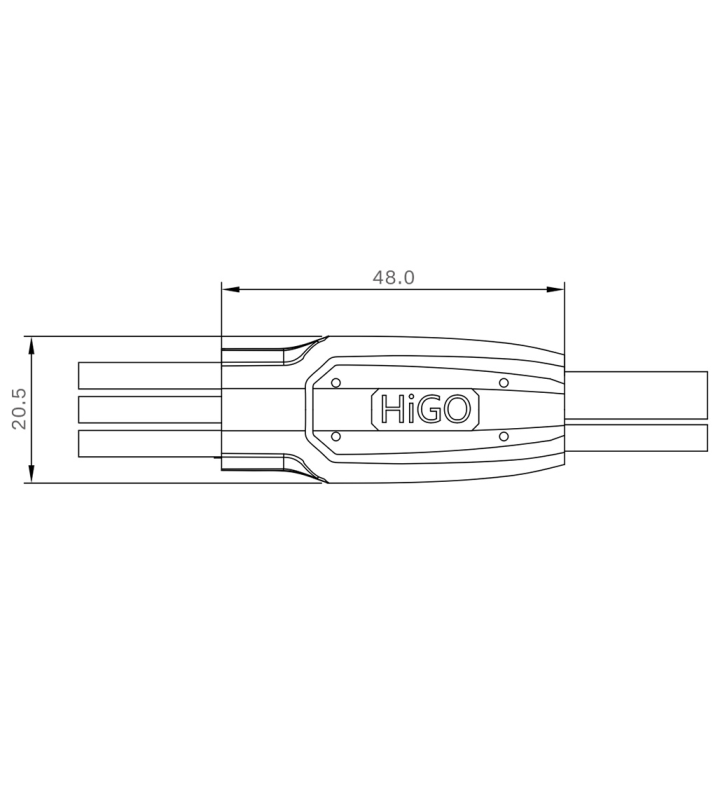

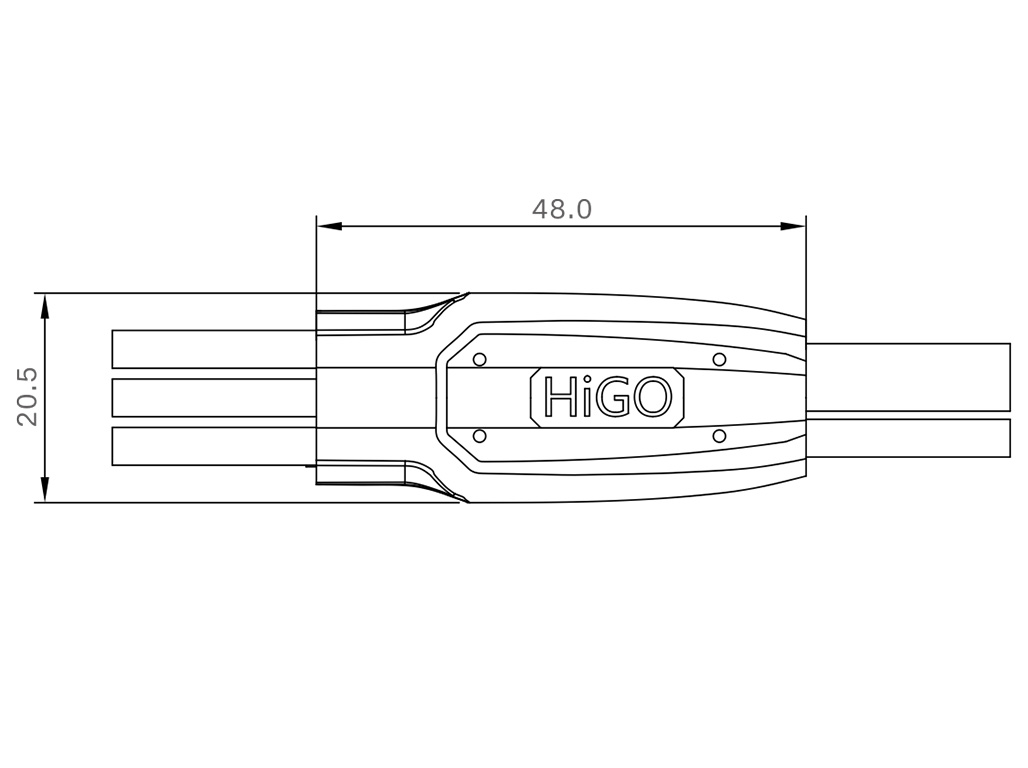

| Splitter size | 48 × 20,5 × 14mm mm |
Electrical Parameters
| Rated voltage | 48 V AC / 60 V DC |
|---|---|
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 MΩ |
| Withstanding voltage | 500 V |
Ask a question about this Higo connector
