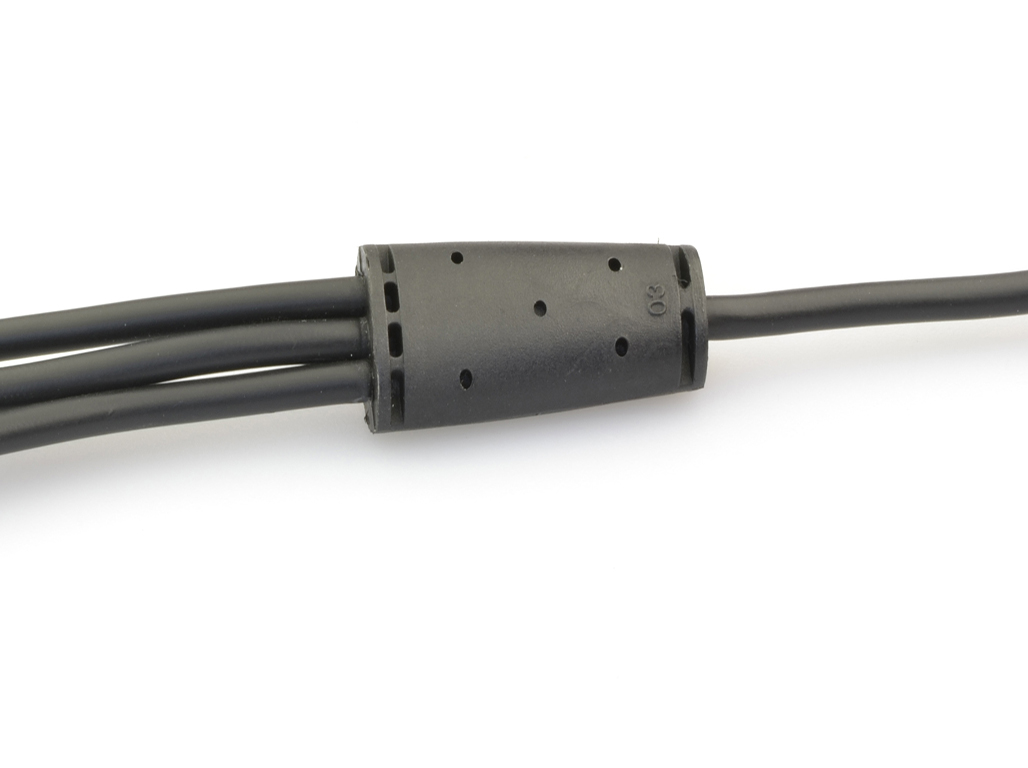

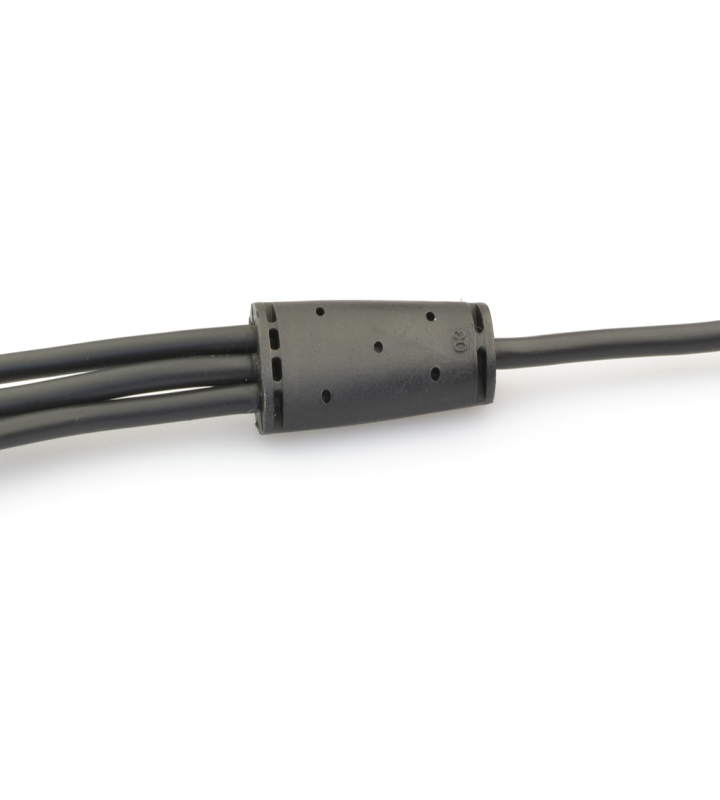

Splitter series 1T3D

1T3D

Ask for a quote Add favourite

General Characteristics

Upper temperature 80 °C
Lower temperature -25 °C
Protection degree IP66
Wire section 0,14 / 0,2 mm²

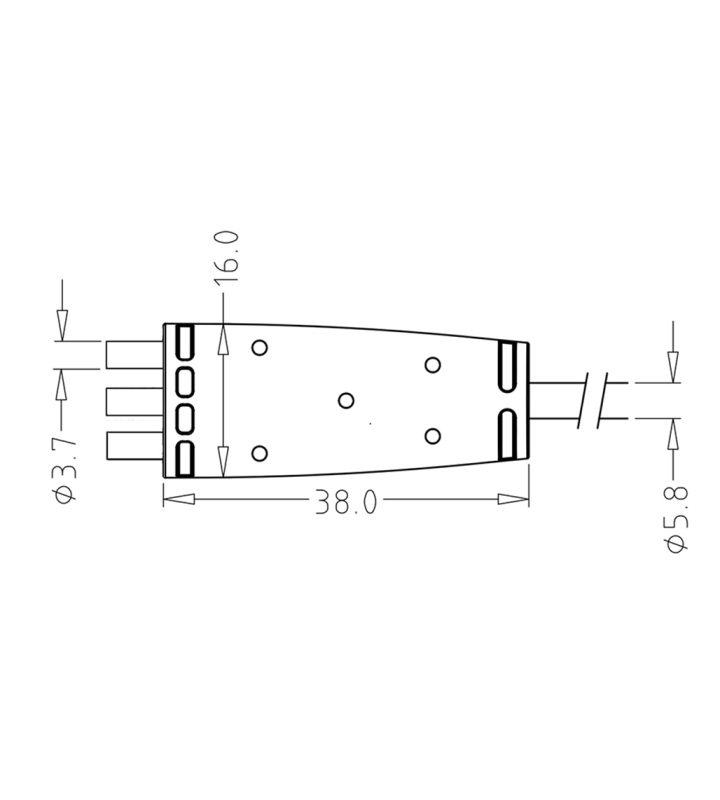

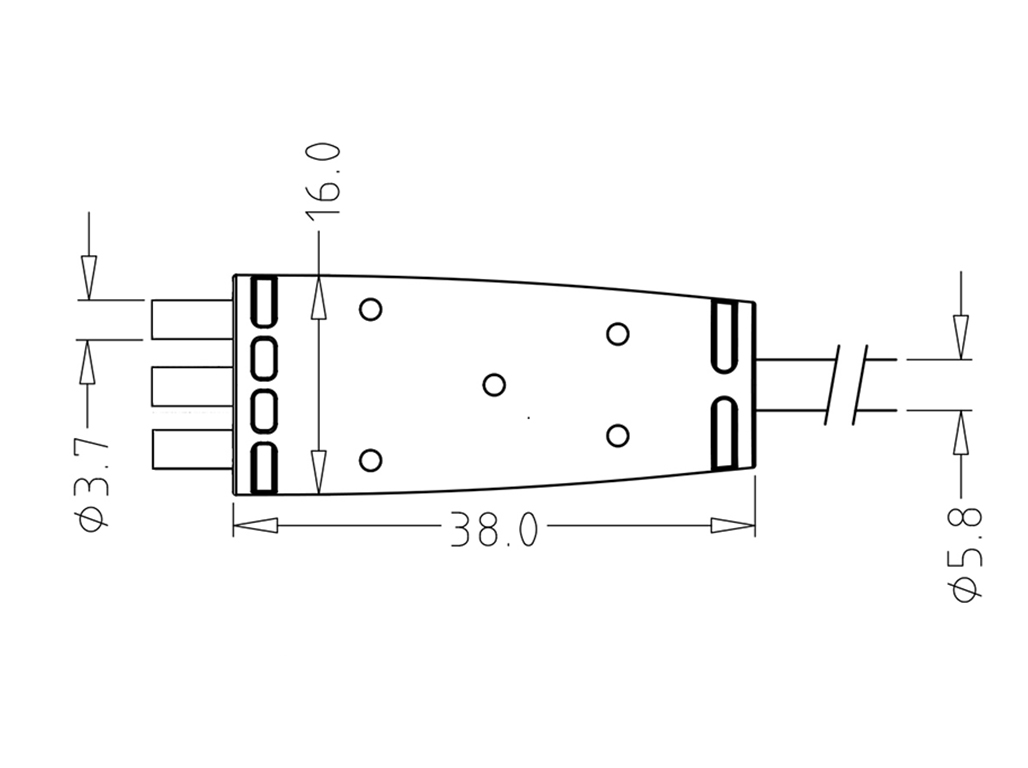

Splitter size 38 x 10,2 x 16 mm

Electrical Parameters

Rated voltage 48 V AC / 60 V DC
Max. insulation resistance (MΩ) ≥20 MΩ
Max. contact resistance (MΩ) ≤10 MΩ
Withstanding voltage 500 V
