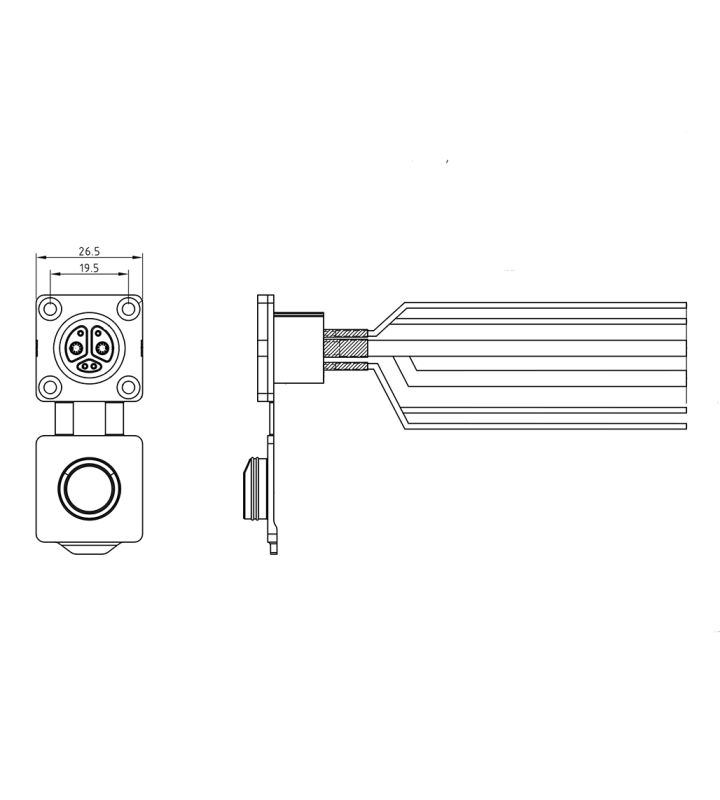

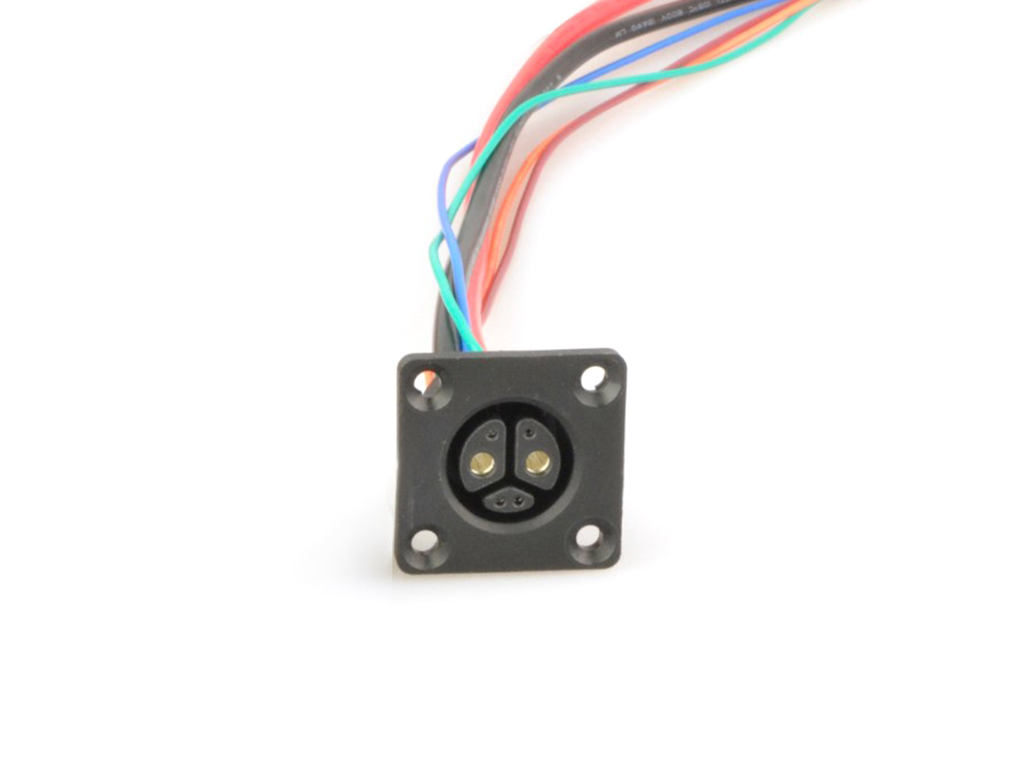

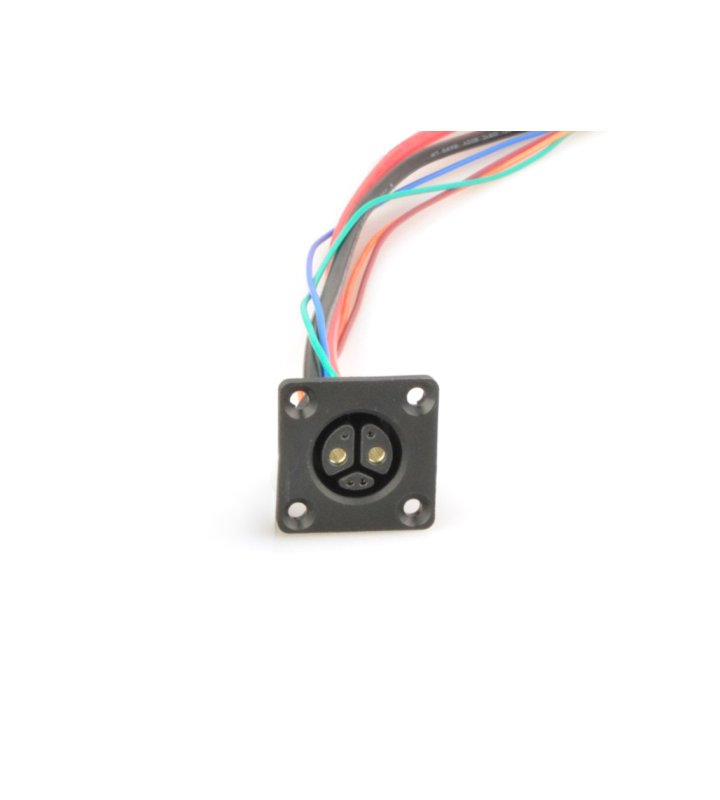

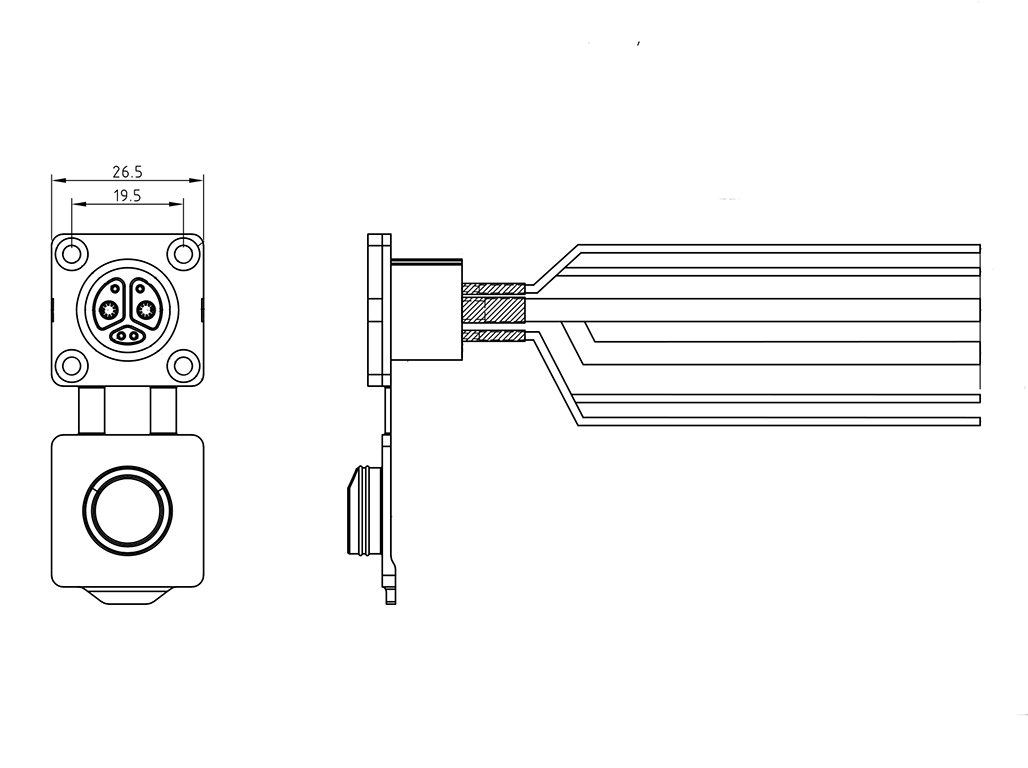

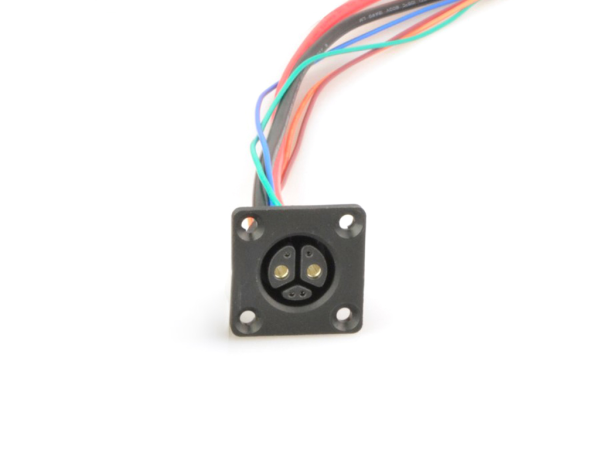

Female panel mount
Z618AM C 03 GA 0300
Fordern Sie ein Angebot an Zu Favoriten hinzufügenGeneral Characteristics
| Number of contacts | 6 (2+4) |
|---|---|
| Connector shape | Panel mount |
| Gender | Female |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Locking | Push-on (no locking) |
| IP Protection | IP67 |
| Mating cycles | 3000 Times |
| Connector diameter | 26,5 X 26,5 mm |
| Cable Length | 300 mm |
| Wire section | 2x3,3mm² + 4x0,20mm² mm² |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 30 / 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 mΩ |
Material
| Insulation wire | PVC |
|---|---|
| Material of contact | Copper alloy |
| Contact plating | Silver plated |
