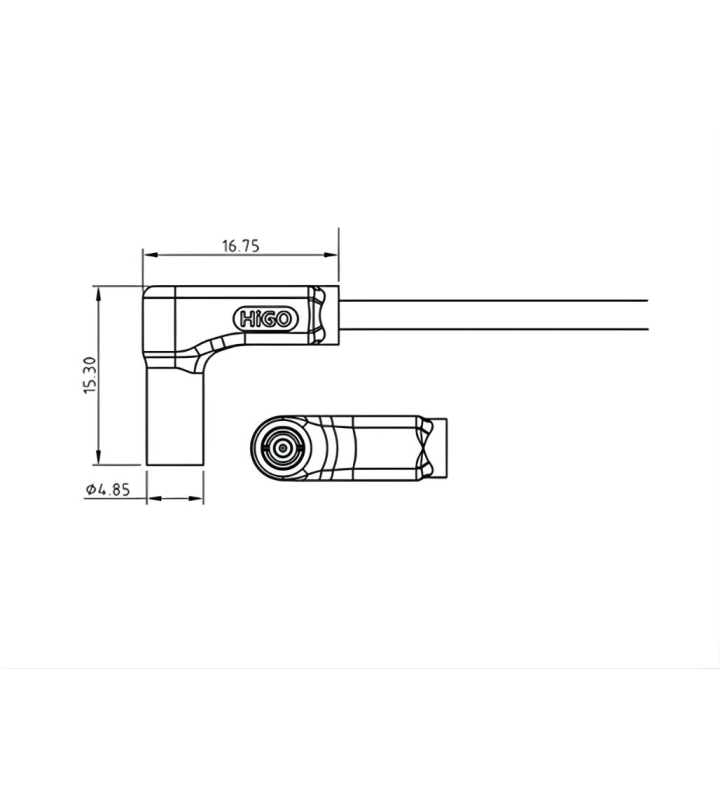

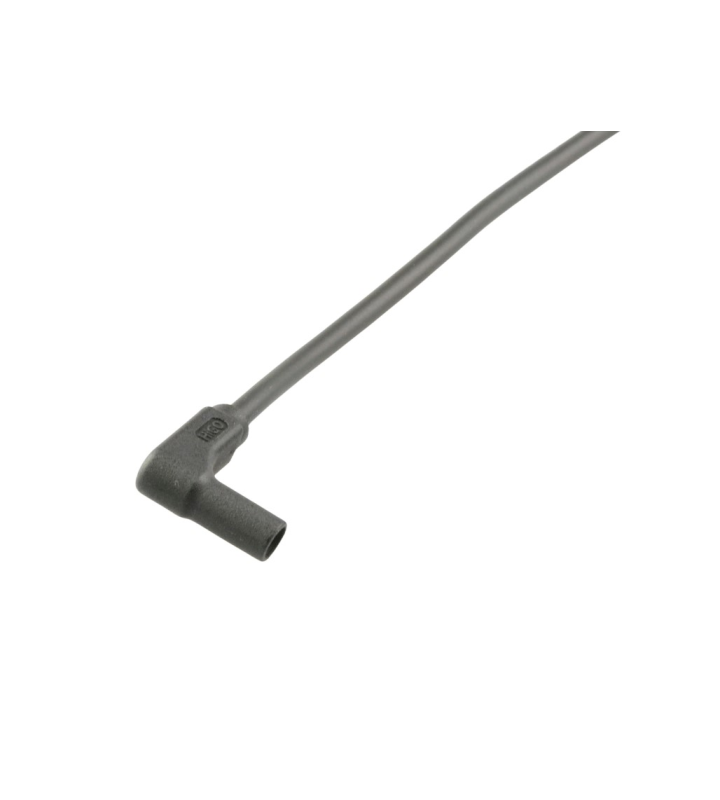

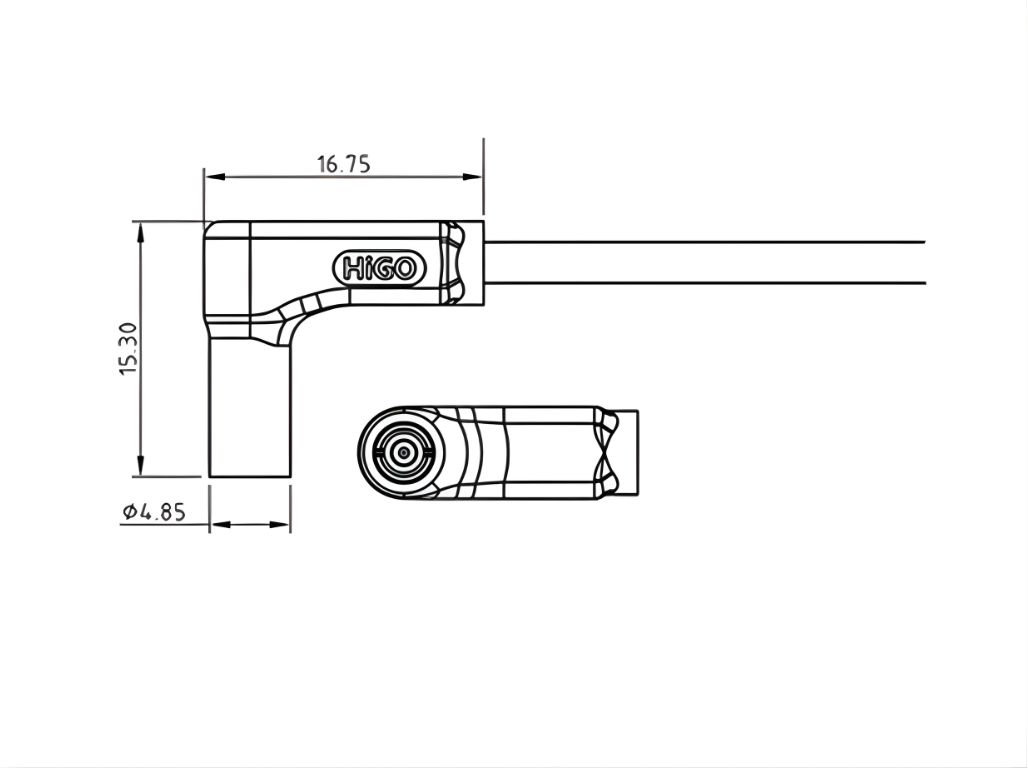

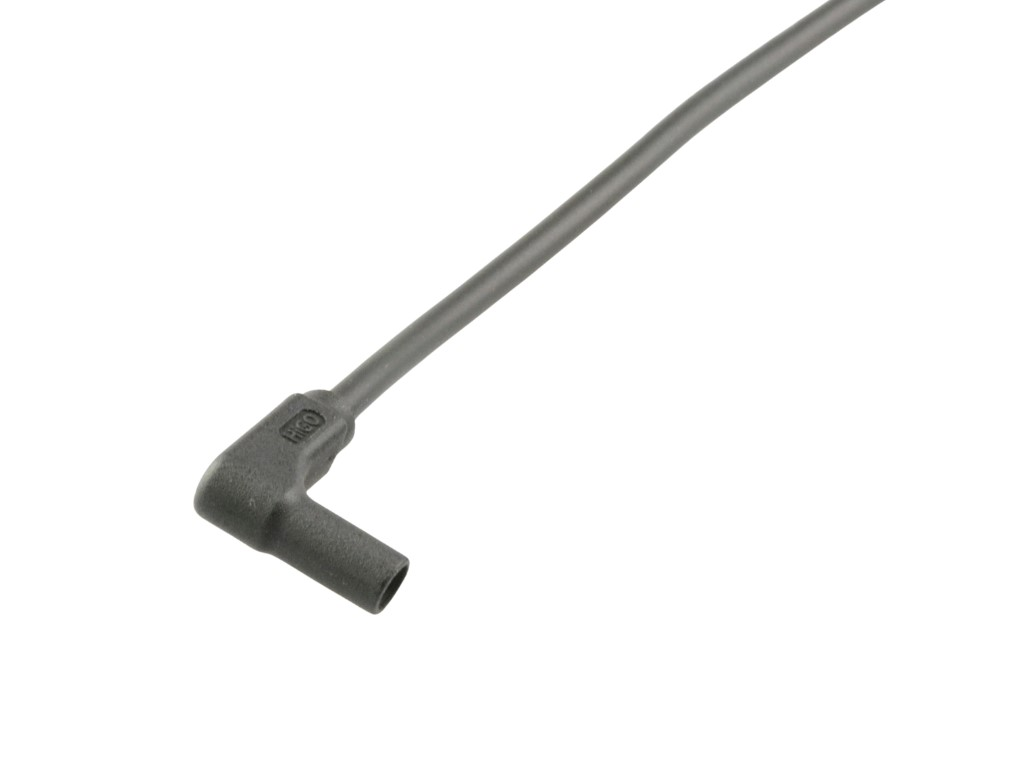

Micro A male angled plug
Push-on (no locking)
Z205AG A 00 GS 1000
Fordern Sie ein Angebot an Zu Favoriten hinzufügenGeneral Characteristics
| Number of contacts | 2 |
|---|---|
| Connector shape | Angled plug |
| Gender | Male |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Locking | Push-on (no locking) |
| IP Protection | IP67 |
| Mating cycles | 200 Times |
| Connector diameter | 4,8 mm |
| Cable Length | 1000 mm |
| Cable diameter | 2,80 mm |
| Remark | Other cable length/type on request |
| Wire section in AWG | 2 x 26 (UL20167) AWG |
Electrical Parameters
| Rated current | 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 mΩ |
Material
| Material jacket | PVC |
|---|---|
| Insulation wire | FEP |
| Material of contact | Copper Alloy |
| Contact plating | Gold over Nickel |
