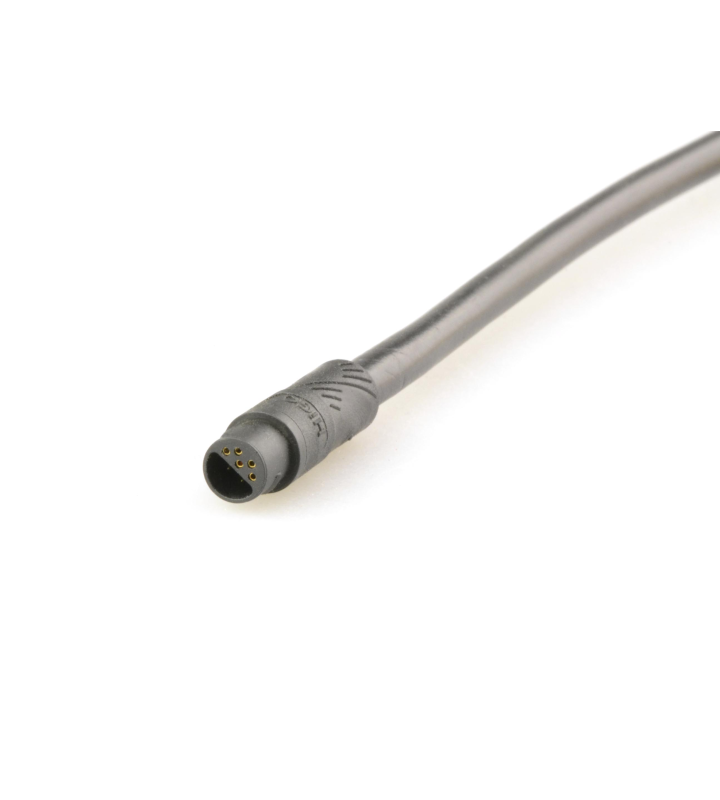

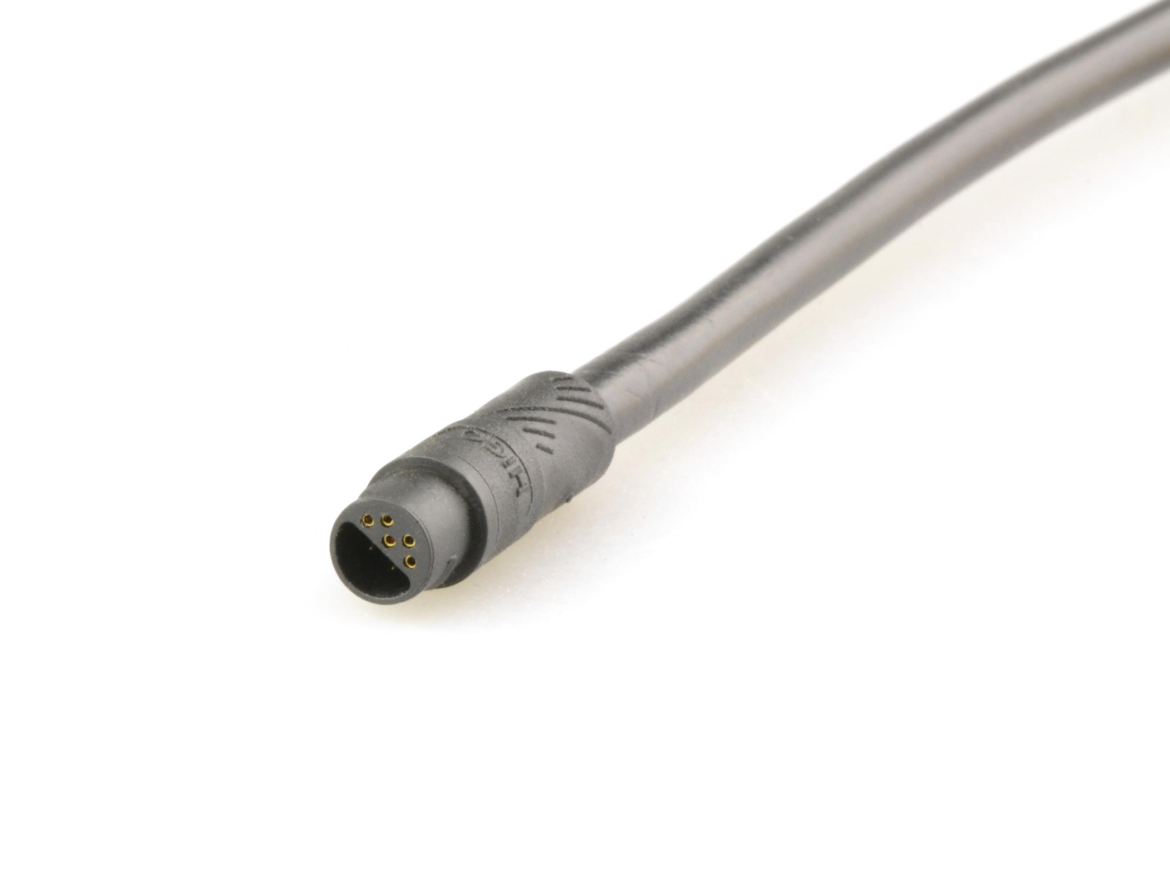

Female cable connector
Z1007CM P 00 E8 1000
Fordern Sie ein Angebot an Zu Favoriten hinzufügenGeneral Characteristics
| Number of contacts | 10 |
|---|---|
| Connector shape | Plug |
| Gender | Female |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Locking | Push-on (no locking) |
| IP Protection | IP67 |
| Mating cycles | 200 Times |

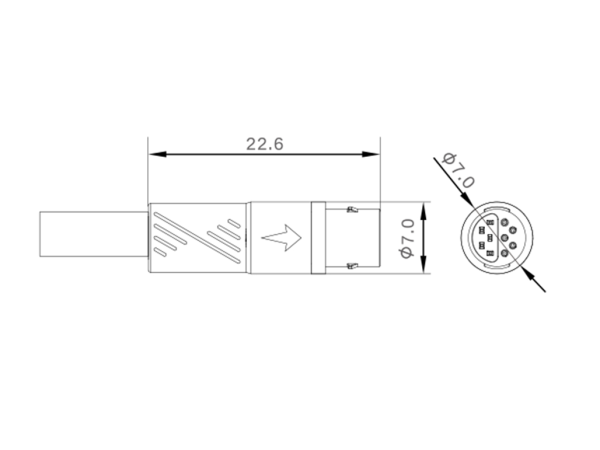

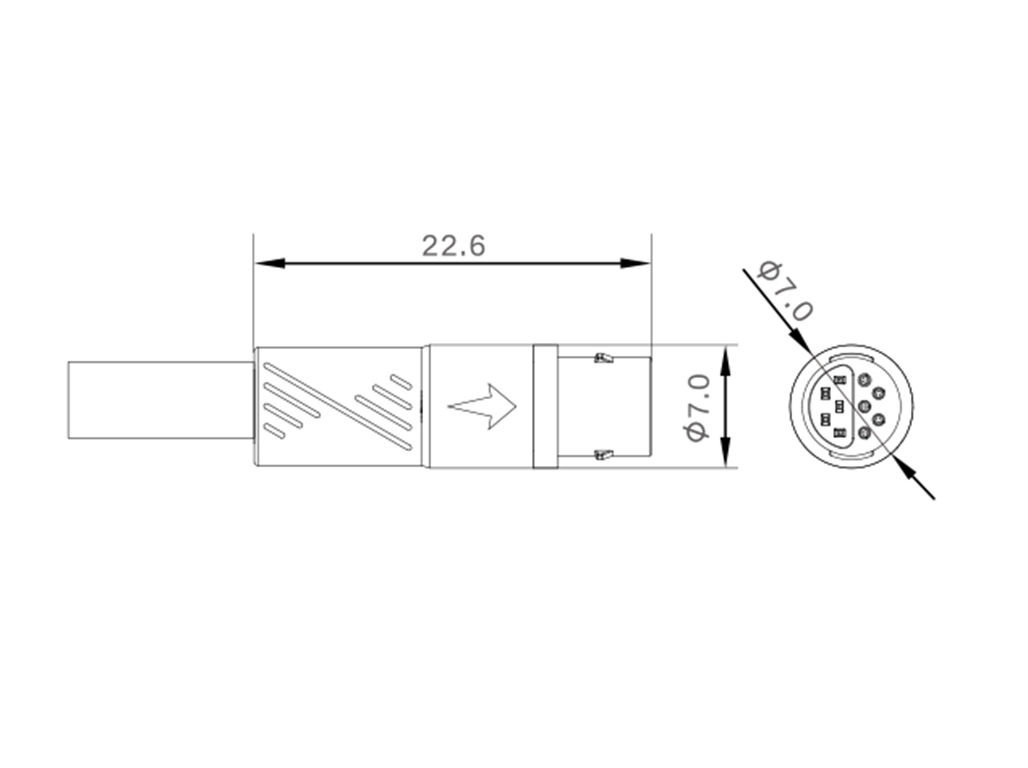

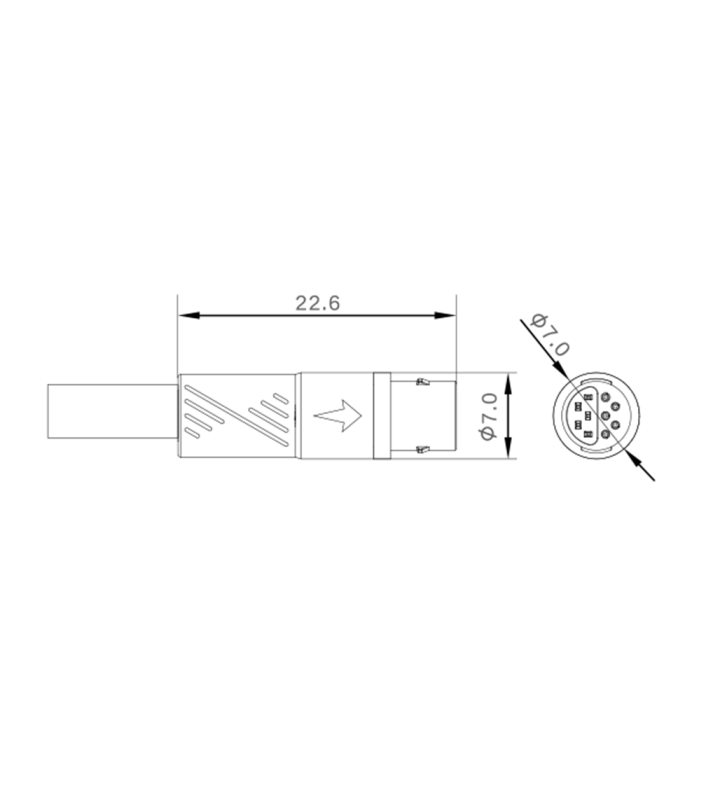

| Connector diameter | 7,0 mm |
| Fitting length | 40,0 mm |
| Cable Length | 1000 mm |
| Cable diameter | 4,2 mm |
Electrical Parameters
| Rated current | 2 A |
|---|---|
| Rated voltage | 48V AC/DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 mΩ |
| Withstanding voltage | 500 V |
Material
| Material jacket | FEP |
|---|---|
| Insulation wire | PVC |
| Contact plating | Gold |
